Ready Mix Concrete Plant

Excellent manufacturing team with experience of over 20 years.
All can be customized to meet your needs&boost productivity.
Passed CE&ISO9001:2008 quality attestation.
Long-term cooperated transport company ensure the timely and safe delivery.
One-stop service, save your precious time.

Excellent manufacturing team with experience of over 20 years.

All can be customized to meet your needs&boost productivity.

Passed CE&ISO9001:2008 quality attestation.

Long-term cooperated transport company ensure the timely and safe delivery.

One-stop service, save your precious time.

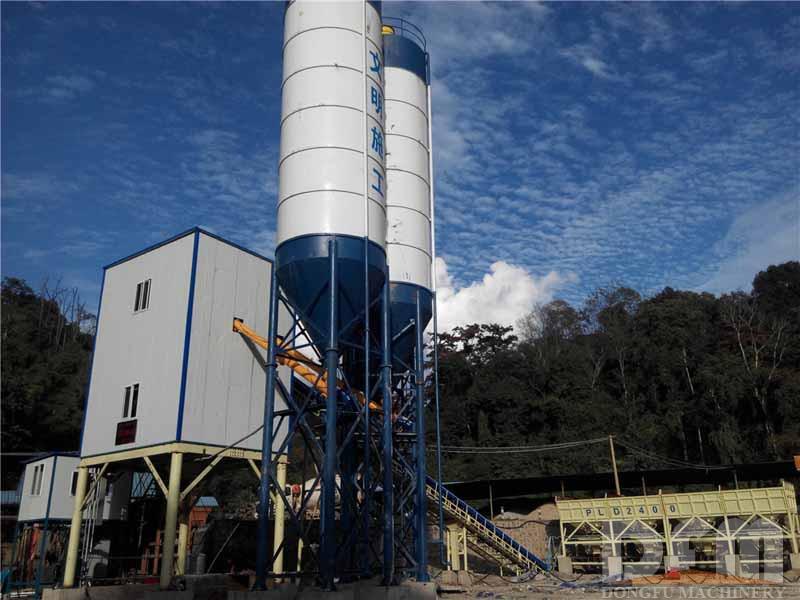

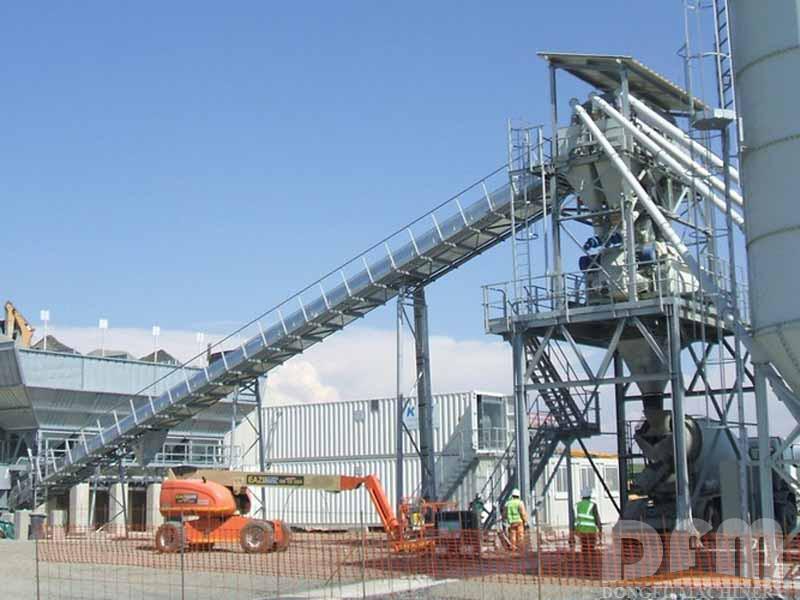

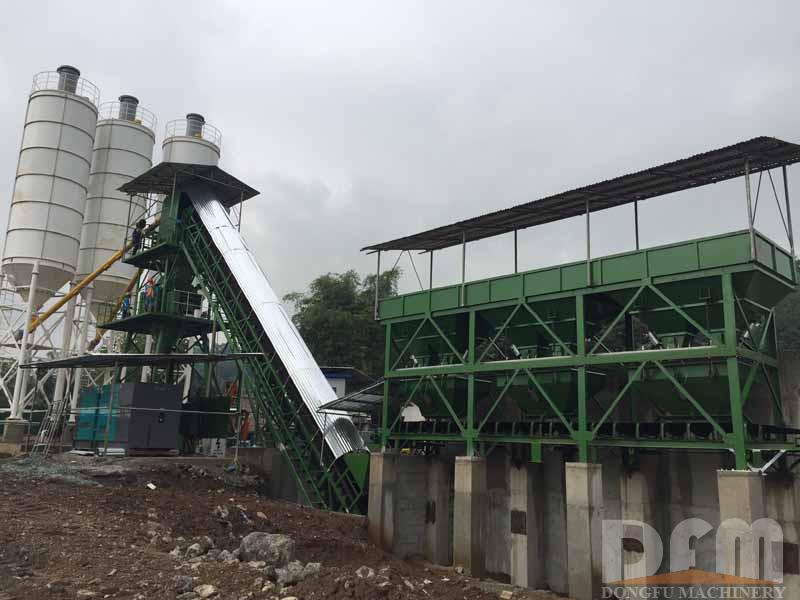

The ready mix concrete plant has a reasonable and compact structure, small covering area and special feeding type. As a leading producer and supplier in Zhengzhou, our company always respects customers' requirements, selling high-quality ready mix batching plant. At present, our machine has been exported into many foreign countries, and has been accepted by various foreign customers.

Main components of ready mix concrete plant:

This equipment is composed by mixer, materials weighing system, materials conveying system, storage system, control system and other subsidiary facilities. Every system is designed with advanced technology.

Features of ready mix concrete batching plant:

Adopt combined structure and modular unit, convenient to install and remove;

Adopting the most advanced technologies in the world to ensure high stability and durability.

A weighing hopper is used to weigh cement, water and additives, to ensure that the measurement is accurate.

Various control system adopt for easy operation.

Mixing and aggregate lifting system adopt JS double-shaft compulsory concrete mixer which offers high quality and efficient mixing.

Applications of ready mix plants:

The ready concrete batching plant can be used to mix dry-hard concrete, plastic concrete, liquid concrete and other lightweight aggregate concrete.

Model		HZS25	HZS35	HZS50	HZS75	HZS60	HZS90	HZS120	HZS180
Global parameter	Maximum productivity (m3/h)	25	35	50	75	60	90	120	180
	Discharging height (m)	1.5–4.2	1.6–4.2	4.2	4.2	4.2	4.2-4.5	4.5	4.5
	Working cycle time(s)	72	72	72	72	60	60	60	60
	Total power (kw)	50	75	88	110	105	145	210	288
Mixer	Model	JS500	JS750	JS1000	JS1500	JS1000	JS1500	JS2000	JS3000
Batcher	Model	PLD800	PLD1200	PLD1600	PLD2400	PLD1600	PLD2400	PLD3200	PLD4800
Pneumatic system	Air compressor	1.0–7	1.0–7	1.5–7	1.8–7	1.5–7	1.8–7	1.8–7	1.8–7
	Discharge pressure(MPa)	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8
	Displacement (m3/min)	1.67	1.67	1.67	1.67	1.67	1.67	1.67	1.67
	Motor power	5.5	5.5	7.5	11	7.5	11	11×2	11×2
Measurement system	Aggregate weighing accuracy	±2%	±2%	±2%	±2%	±2%	±2%	±2%	±2%
	Cement weighing accuracy	±1%	±1%	±1%	±1%	±1%	±1%	±1%	±1%
	Water weighing accuracy	±1%	±1%	±1%	±1%	±1%	±1%	±1%	±1%
	Additive weighing accuracy	±1%	±1%	±1%	±1%	±1%	±1%	±1%	±1%
Total weight		16T	23T	28T	37T	36T	46T	52T	70T
