Model：HZS25.
Maximum productivity(m³/h)： 25.
Discharging height(m)： 1.5-3.8.
Working cycle time(s)： 72.
Outline dimension(mm)： 11693×13060×17245.
Total power (kw)： 50.
Total weight： 16T.
DFM MACHINERY can easily cover its customers’ requests with its stationary concrete batching plants in different capacities and specifications.
DFM MACHINERY has a wide range of Stationary Concrete Batching Plants which have production capacity from 25 m³/h to 180 m³/h of one mixer.
In addition the capacity of Stationary Concrete Batching Plants with double mixers on the same chassis can reach 240 m³/h to 360 m³/h.

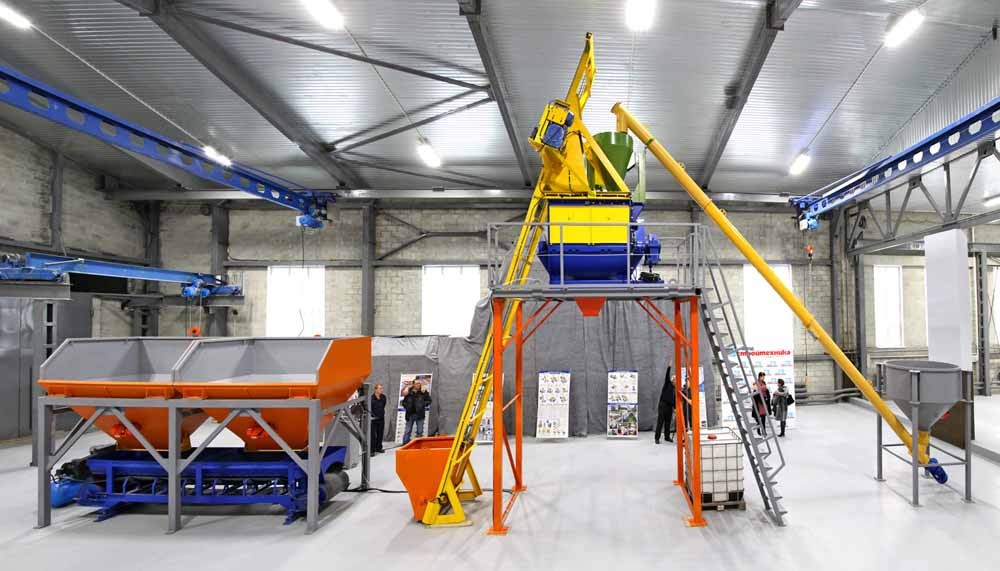

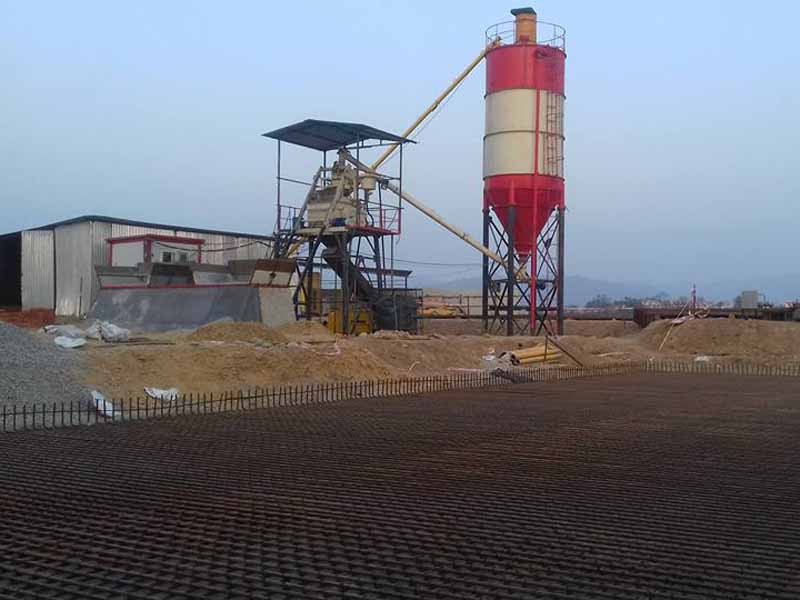

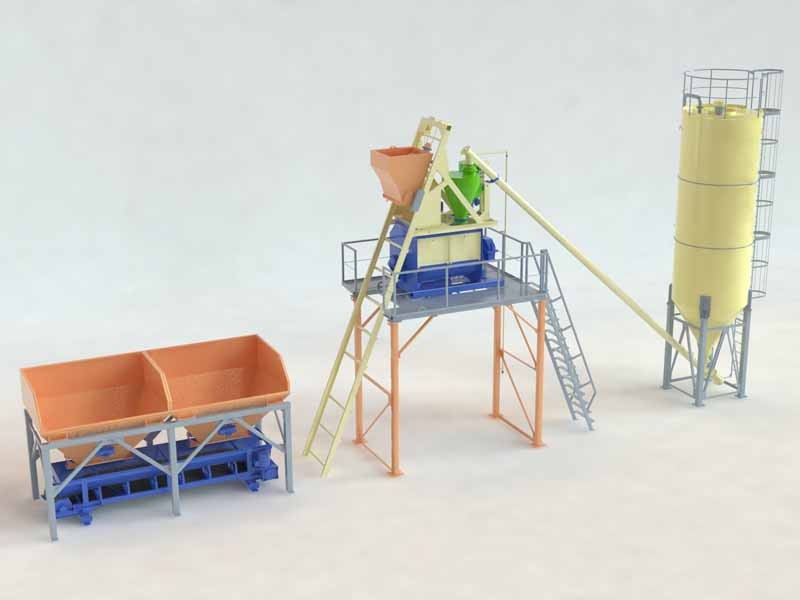

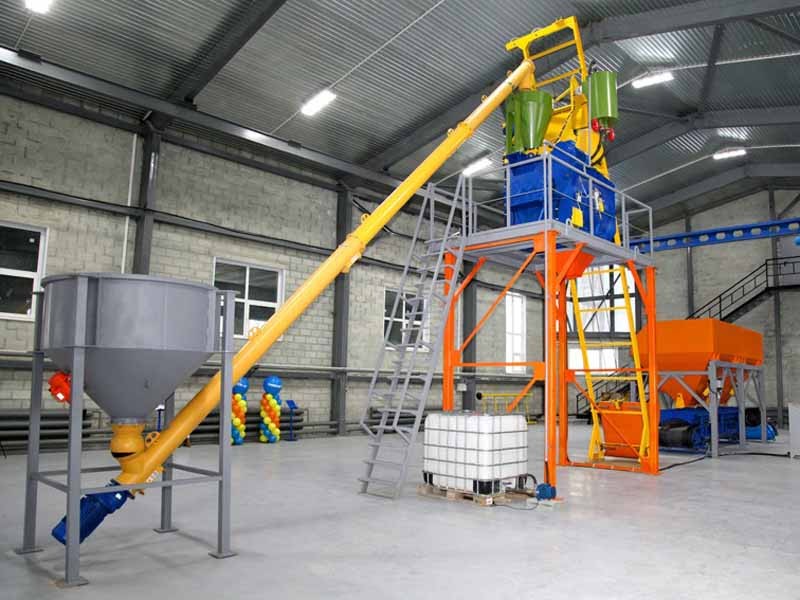

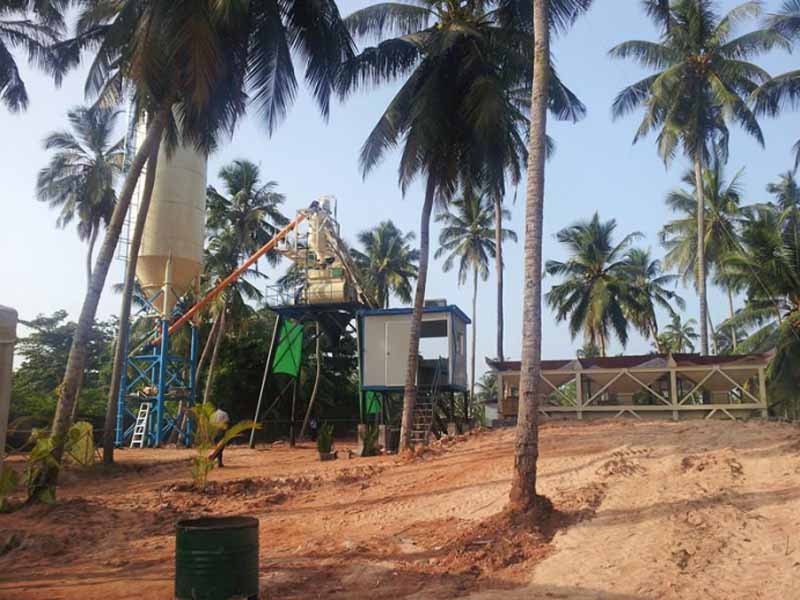

HZS 25 Concrete Batching Plants are composed of mixing batching and electrical control system etc. It is suitable for small-scale construction site.
Theory Capacity: 25m³/h
The Mixing System: The mixer is JS500 twin shafts with arms screwed ensure shorter mixing time but higher evenness.
Batching System: PLD800/Individual batching machine has adopted electric weighing automatically be applied for correction and measure.The batching aggregates can be 2-4 types. 2 m³ Basic Storage Bins Volume 800L Weighing Bins Volume 3kw Motor. Batching machine can be supplied as your requirements.
Feeding System: Hopper feeder anti-block patents technology ensures forever non-block.
Weighing system: The system has buffering device auto compensation function and very high weighing accuracy.
Cement silo: Adoption of sheet-assembled structure can solve the problems for transportation.With the dust collector equipment it can prevent dust leakage efficiently and the brake device can prevent dust caking.
Control system: PC+PLC control system ensures high reliability Simple/Standard for optional as your requirements.
HZS 25 Concrete Batching Plants provide below given advantages to the concrete producers:
High Production Performance.
High Quality and Precise Concrete Production (with Fully Automated Computerized Control System).
Different Layout Options according to Customer Requirements.
The Quantity of cement silo and screw conveyor can be choosed by users.
Modular Design Space-Saving Integrated Design Easy Installation and Removal.
Model | HZS25 | HZS35 | HZS50 | HZS75 | |
Global parameter | Maximum productivity (m³/h) | 25 | 35 | 50 | 75 |
Discharging height (m) | 1.5–3.8 | 1.6–3.8 | 4.2 | 4.2 | |
Working cycle time(s) | 72 | 72 | 72 | 72 | |
Outline dimension(mm) | 11693×13060×17245 | 12922×13000×17245 | 15689×12500×18704 | 17608×12500×18704 | |
Total power (kw) | 50 | 75 | 88 | 110 | |
Mixer | Model | JS500 | JS750 | JS1000 | JS1500 |
Batcher | Model | PLD800 | PLD1200 | PLD1600 | PLD2400 |
Pneumatic system | Air compressor | 1.0–7 | 1.0–7 | 1.5–7 | 1.8–7 |
Discharge pressure(MPa) | 0.8 | 0.8 | 0.8 | 0.8 | |
Displacement (m³/min) | 1.67 | 1.67 | 1.67 | 1.67 | |
Motor power | 5.5 | 5.5 | 7.5 | 11 | |
Measurement system | Aggregate weighing accuracy | ±2% | ±2% | ±2% | ±2% |
Cement weighing accuracy | ±1% | ±1% | ±1% | ±1% | |
Water weighing accuracy | ±1% | ±1% | ±1% | ±1% | |
Additive weighing accuracy | ±1% | ±1% | ±1% | ±1% | |
