Model: QMJ4-35C
Production: Standard /Hollow /Multihole Brick
Eight hour yield: 12600/ 360 /2400
Produce Period(s): 35

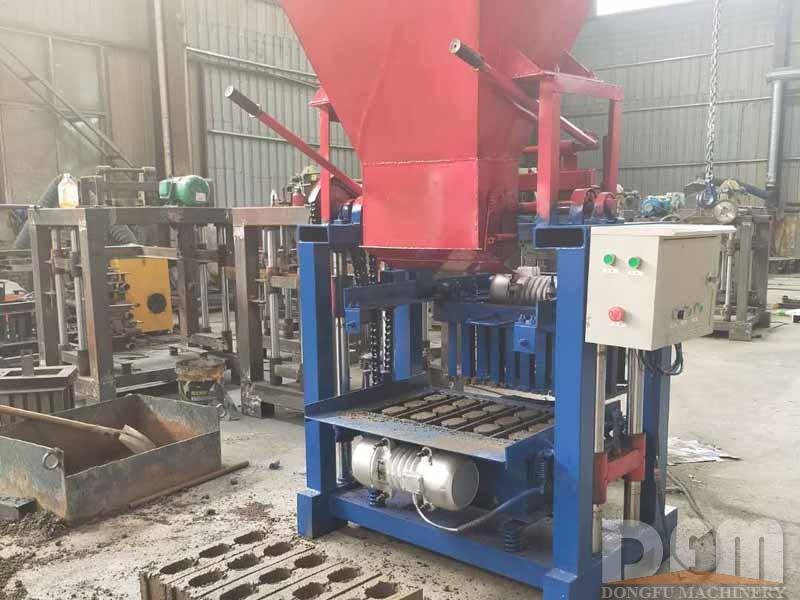

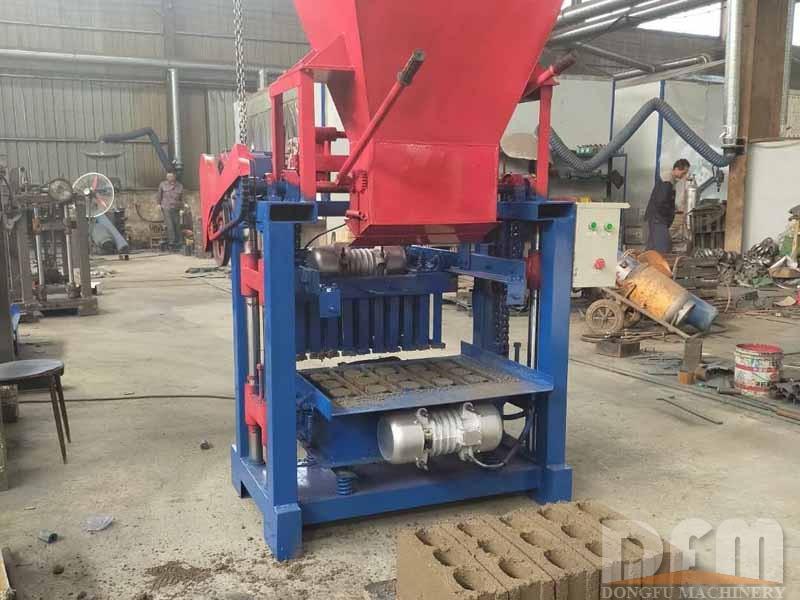

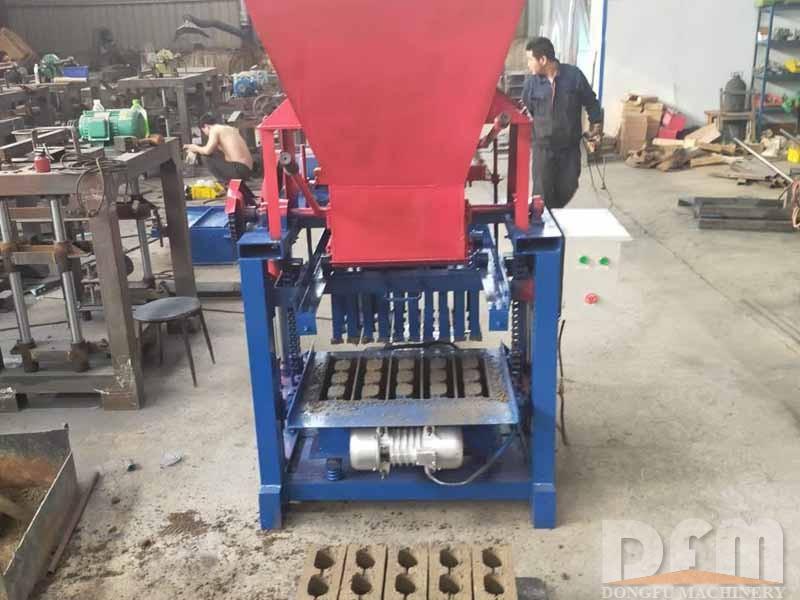

Cement brik machine, also called the baking machine is mechanical equipment, which is used of raw materials to carry out the scientific ratio, add water and mixing. The brick making machine can pressure highly cement brick, hollow brick and colorful road brick, which need not sintering and can use with short time drying .It possess the features of simple operation, low investment and large-scale production and is one of the ideal models in current market, so it is the first choice to customers.
Main Features
1. Environmentally friendly .Because of using electric, it is very environmental, not produce pollution air. The used materials are slag, construction waste, cement which is using up waste.
2. Operate easily, the machine is convenient for customers to use.
3. Maintenance easily, the interlocking clay brick making machine can be cleaned and made some basic maintenance easily by buyers.
4. Saving labor and time, is not only save manpower and time but also improve efficient. .
Main technical parameters | |
Model | QMJ4-35C |
Power | 4.8kw |
Weight | 810kg |
Voltage | 380v/220v |
Board size | 900*450*30mm |
Overall size | 1580*1100*2100mm |
Productivity | 1800-12600pcs/ 8hours |
Types and capacity | |||
Cut specifications (mm) | Number of molded blocks(pcs) | Molding cycle(s) | Class production (pcs/8 hours) |
390*190*190 | 4 | 35 | 2400 |
390*240*190 | 3 | 35 | 1800 |
390*150(140)*190 | 5 | 35 | 3000 |
390*120(115)*190 | 6 | 35 | 3600 |
240*115*90 | 9 | 35 | 2000-3000 |
240*115*50 | 21 | 35 | 10000-12600 |
