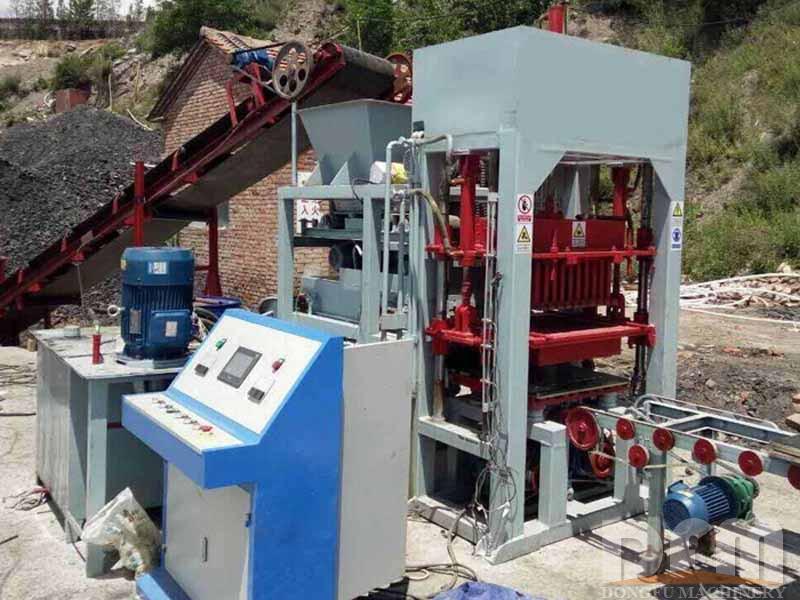

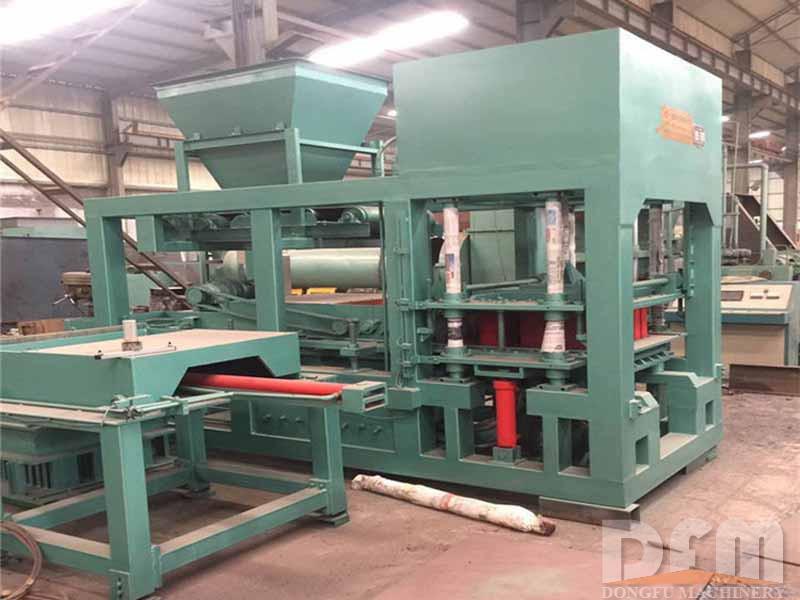

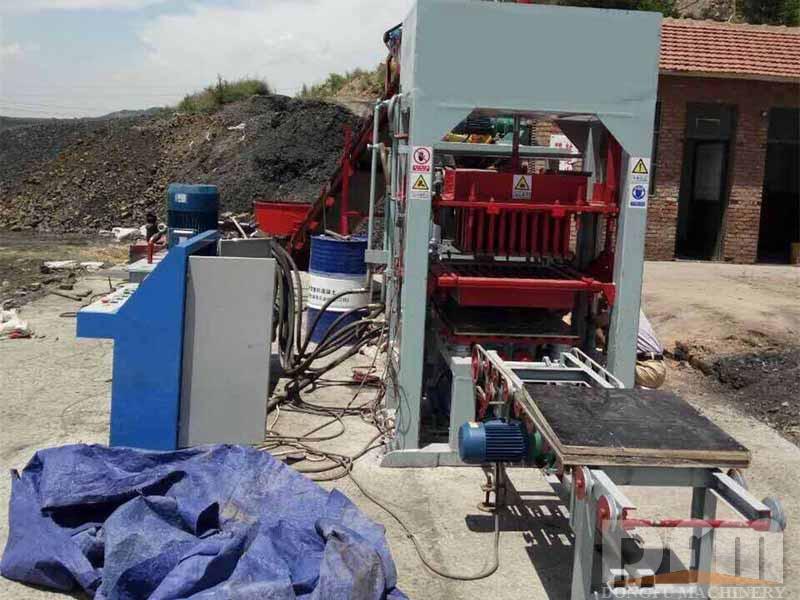

QT4-15 Concrete Block Making Machine

Model: QT4-15
Exciting force (KN): 50
Vibration frequency(HZ): 0-50
Power(KW): 10.7
Forming type: Semi automatic loading and molding
Forming cycle (S): 20-25
Outline dimension: 4388×1660×2100
Pallet size: 840×500×20
Normal output: 30000

QT4-15 Concrete Block Making Machine is the newest fully automatic block machine .its pressure system become two hydro-cylinder.The lifting speed fast and the pressure function is well. It is fully automatic production lineincluding PLD800 Batching machineJS500 MixerQT4-15 block machine Stacker machine and so on.

Ingredients: Industrial raw materials like gravel sand cement ash cinder slag stone etc.

Usage of production: concrete building cut solid cut hollow cut paving brick-making.

Application: Widely used in construction roads parks greeningurban construction and so on.

Model	Products	Size	Block Qty/Plate	PCS/Hour	PCS/8Hours
QT4-15	Hollow Blocks	390×190×190	4	960	7680
	Perforated Blocks	240×115×90	14	3360	26880
	Solid Blocks	240×115×53	28	6720	53760

Model	QT4-15
Mixer	JS500
Batcher	PLD800
Cement Silo	sheet-assembled 50T
Screw Conveyer	LSY 219*6m
Exciting force (KN)	50
Vibration frequency(HZ)	0-50
Power(KW)	10.7
Forming type	Semi automatic loading and molding
Control type	emi-automatic control PLC
Forming cycle (S)	20-25
Outline dimension	4388×1660×2100
Weight (T)	3
Pallet size	840×500×20
