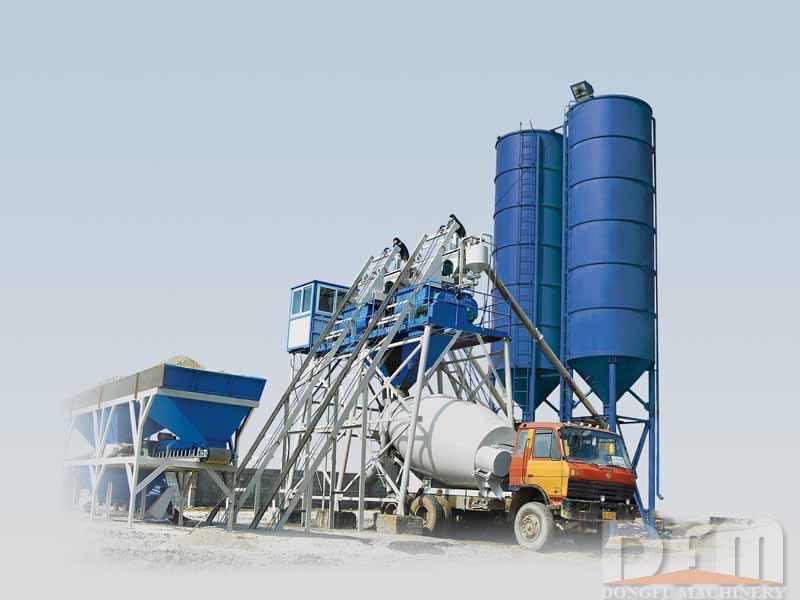

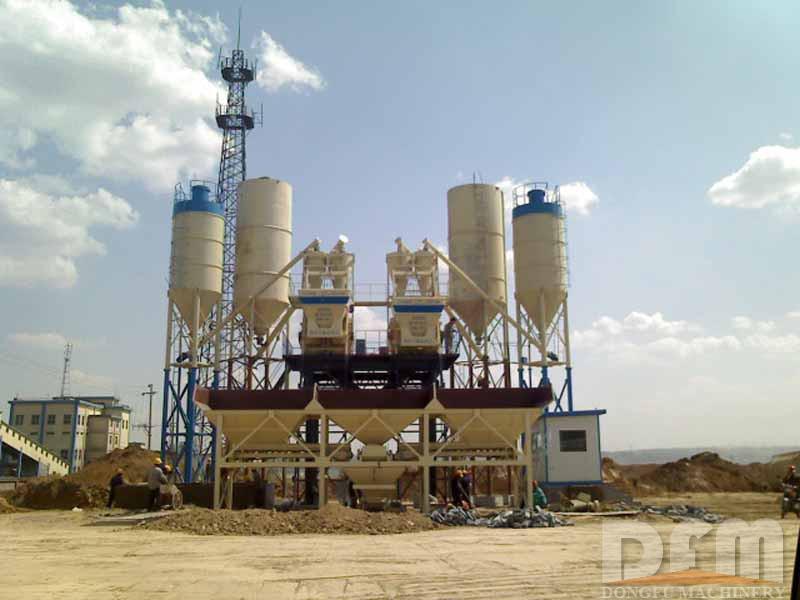

Central mix concrete plants adopt advanced technology and now they have been widely exported into worldwide countries. Due to the competitive price and high quality, the equipment is very popular both home and abroad.

Central mix concrete plants adopt JS twin-shaft mixer so it can mix both dry-hard concrete and plastic concrete . What's more, due to its high working efficiency and large capacity output the Central mix concrete plants is widely used in large and medium sized construction, like road, bridge, railway and others. In short the central concrete batch plant is ideal equipment for users to buy.

The mixing system adopts JS series twin-shaft concrete mixer with good mixing homogeneity.

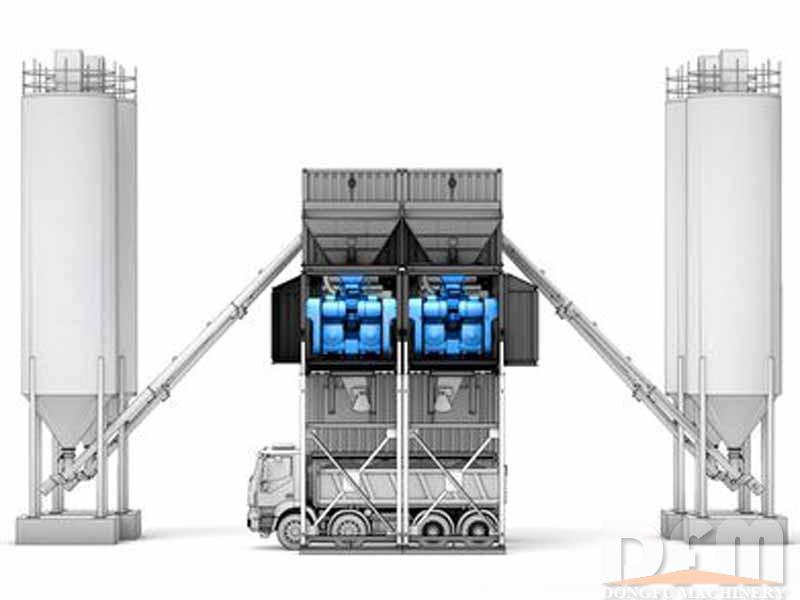

With compact structure of modular organization which can meet the requirements of container transport and is convenient for transport and quick installation dis-assembly.

Aggregate lifting appliance adopts frequency control thus providing smooth and reliable operation.

Lubrication system adopts advanced centralized oil lubricating system convenient for oil supplying this system is equipped with over voltage warning and low oil level warning safe and reliable.

Model		HZS25-2	HZS35-2	HZS50-2	HZS75-2
Global parameter (m3/h)	Maximum productivity	50	70	100	150
	Discharging height(m)	1-4.2	1-4.2	1-4.2	1-4.2
	Working cycle time(s)	72	72	72	72
	Outline dimension(m)	11×12.7×17.25	11×12.7×17.25	11×13.7×18.25	12×13.7×18.25
	Total power (kw)	70.5	108	125	155
Mixer	Model	JS500*2	JS750*2	JS1000*2	JS1500*2
Batcher	Model	PLD800	PLD1200	PLD1600	PLD2400
Pneumatic system	Air compressor	0.9-3	0.9-3	0.9-3	1.2-3
	Discharge pressure(MPa)	0.8	0.8	0.8	0.8
	Displacement(m3/min)	1.67	1.67	1.67	1.67
	Motor power	7.5*2	7.5*2	7.5*2	11*2
Measurement system	Aggregate weighing accuracy	±2%	±2%	±2%	±2%
	Cement weighing accuracy	±1%	±1%	±1%	±1%
	Water weighing accuracy	±1%	±1%	±1%	±1%
	Additive weighing accuracy	±1%	±1%	±1%	±1%
Total weight		20T	28.5T	35.8T	45.6T
