Hopper Type Concrete Batching Plant

1. Excellent manufacturing team with experience of over 20 years.
2. All can be customized to meet your needs&boost productivity.
3. Passed CE&ISO9001:2008 quality attestation.
4. Long-term cooperated transport company ensure the timely and safe delivery.
5. One-stop service save your precious time.

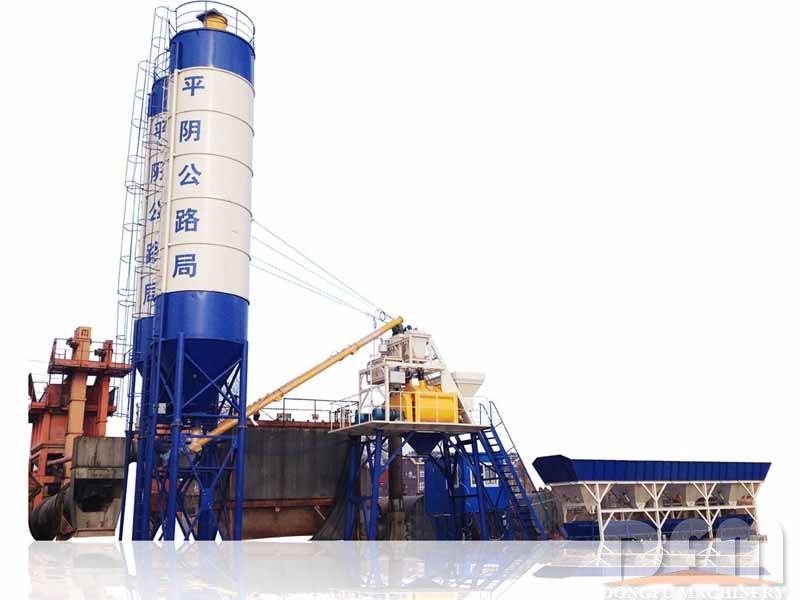

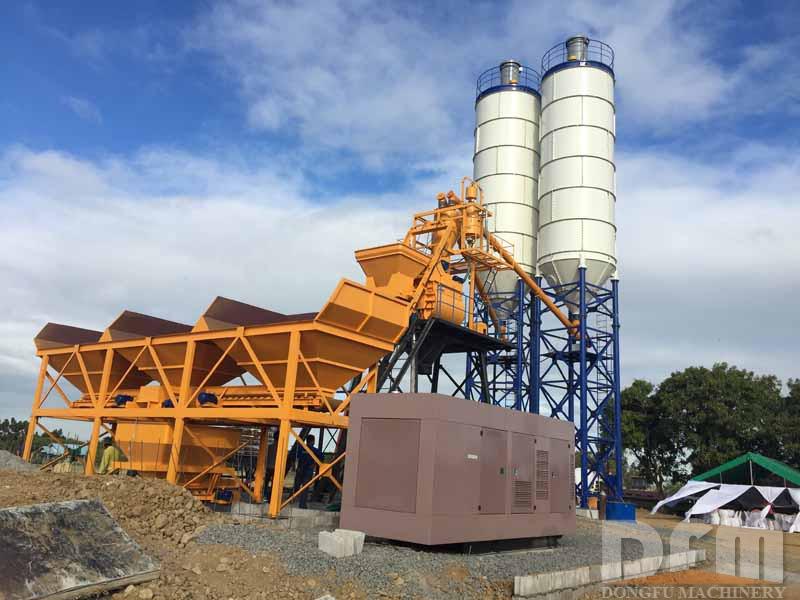

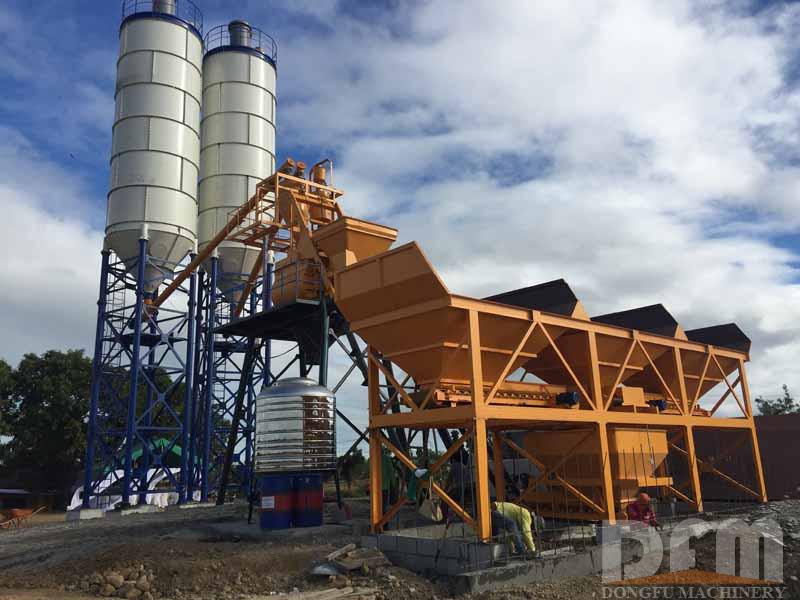

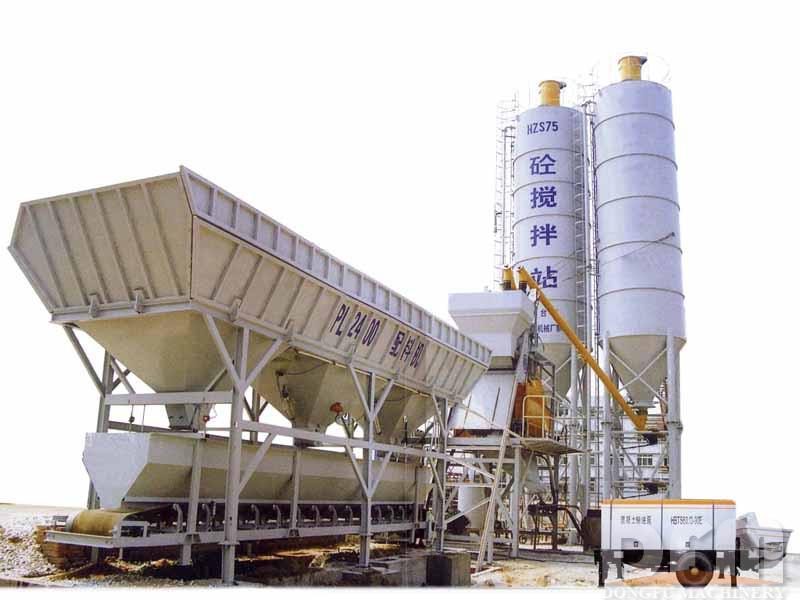

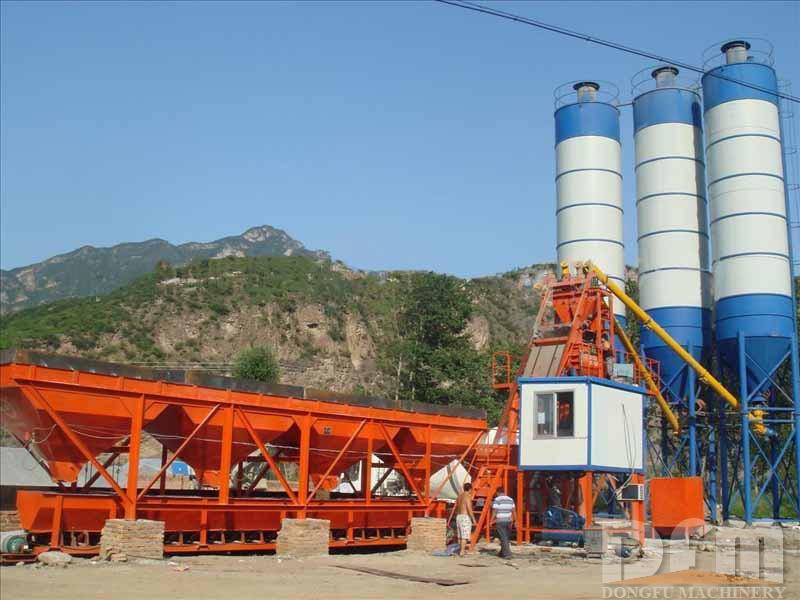

DFM MACHINERY can easily cover its customers requests with its stationary concrete batching plants in different capacities and specifications.

DFM MACHINERY has a wide range of Stationary Concrete Batching Plants which have production capacity from 25 m³/h to 180 m³/h of one mixer. In addition, the capacity of Stationary Concrete Batching Plants with double mixers on the same chassis can reach 240 m³/h to 360 m³/h.

Skip Hoist Type Concrete Batching Plant are composed of mixing，batching and electrical control system etc. It is suitable for small-scale construction site.

Model		HZS25	HZS35	HZS50	HZS75
Global parameter	Maximum productivity (m3/h)	25	35	50	75
	Discharging height (m)	1.5–3.8	1.6–3.8	4.2	4.2
	Working cycle time(s)	72	72	72	72
	Outline dimension(mm)	11693×13060×17245	12922×13000×17245	15689×12500×18704	17608×12500×18704
	Total power (kw)	50	75	88	110
Mixer	Model	JS500	JS750	JS1000	JS1500
Batcher	Model	PLD800	PLD1200	PLD1600	PLD2400
Pneumatic system	Air compressor	1.0–7	1.0–7	1.5–7	1.8–7
	Discharge pressure(MPa)	0.8	0.8	0.8	0.8
	Displacement (m3/min)	1.67	1.67	1.67	1.67
	Motor power	5.5	5.5	7.5	11
Measurement system	Aggregate weighing accuracy	±2%	±2%	±2%	±2%
	Cement weighing accuracy	±1%	±1%	±1%	±1%
	Water weighing accuracy	±1%	±1%	±1%	±1%
	Additive weighing accuracy	±1%	±1%	±1%	±1%
