Belt Type Concrete Batching Plant

Excellent manufacturing team with experience of over 20 years.
All can be customized to meet your needs & boost productivity.
Passed CE&ISO9001:2008 quality attestation.
Long-term cooperated transport company ensure the timely and safe delivery.
One-stop service save your precious time.

Excellent manufacturing team with experience of over 20 years.

All can be customized to meet your needs & boost productivity.

Passed CE&ISO9001:2008 quality attestation.

Long-term cooperated transport company ensure the timely and safe delivery.

One-stop service save your precious time.

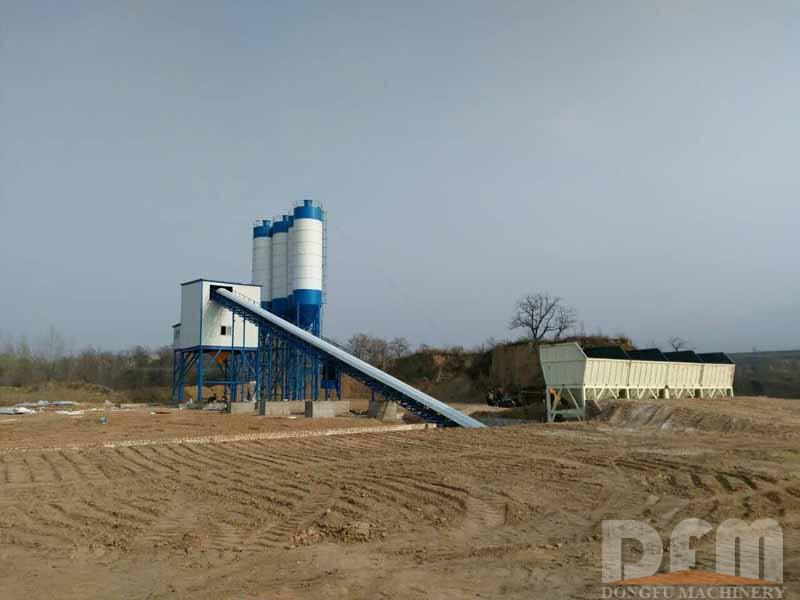

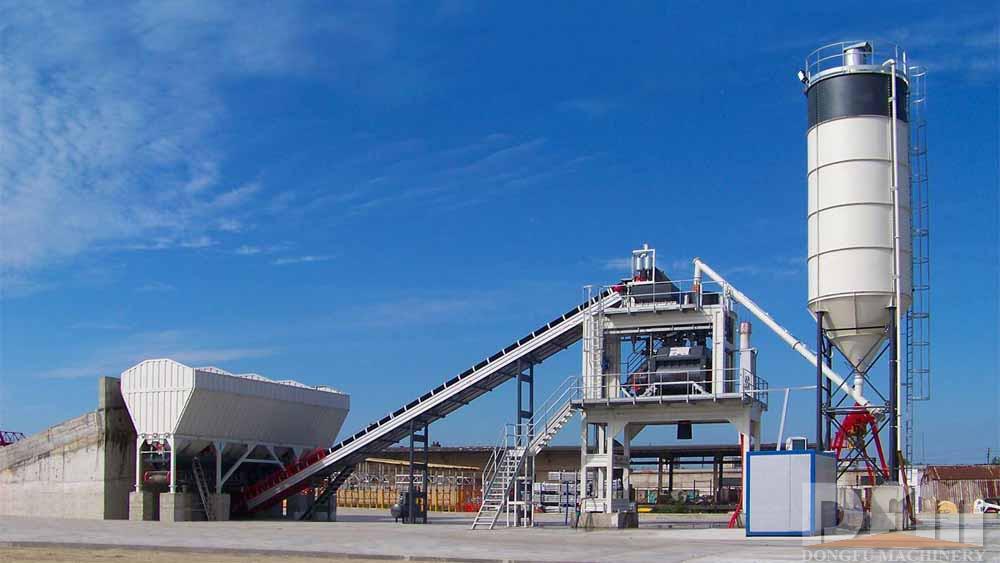

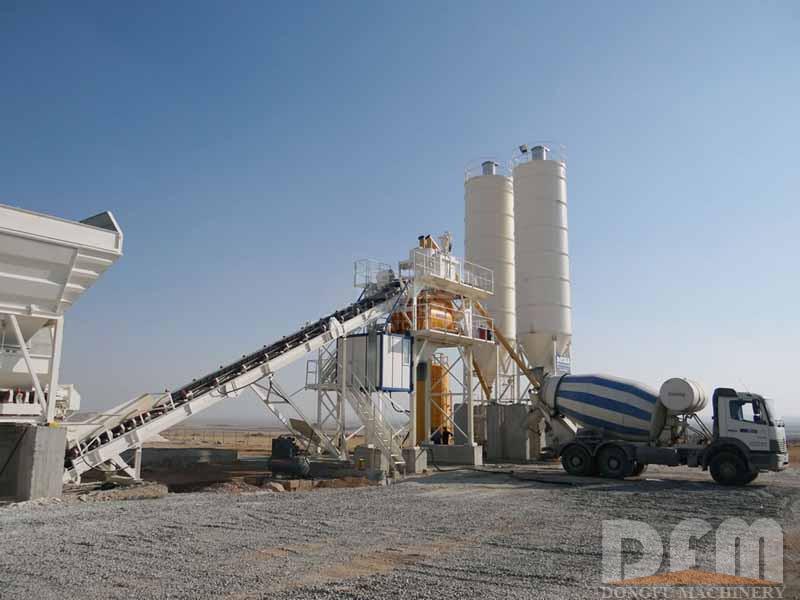

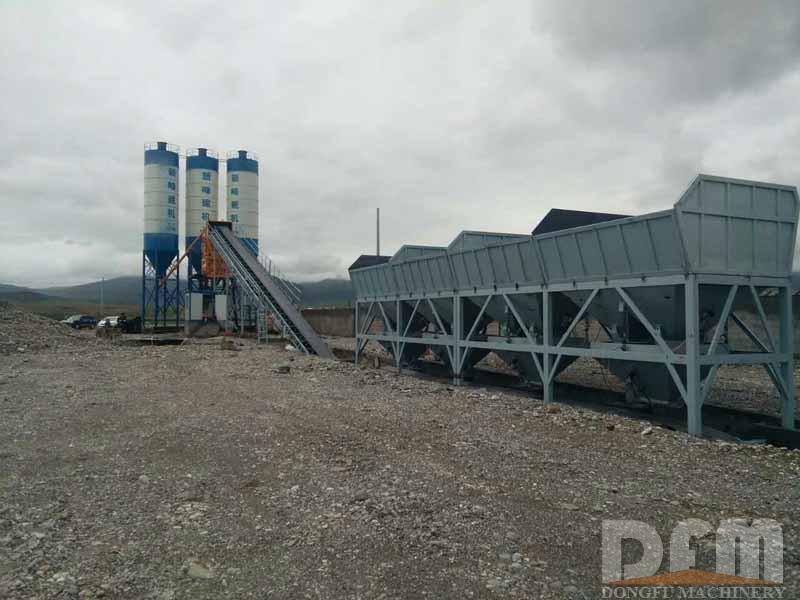

The HZS series Belt Conveyor Type concrete batching plant can produce plastic concrete and dry concrete efficiently. It is an ideal equipment to produce commercial concrete.

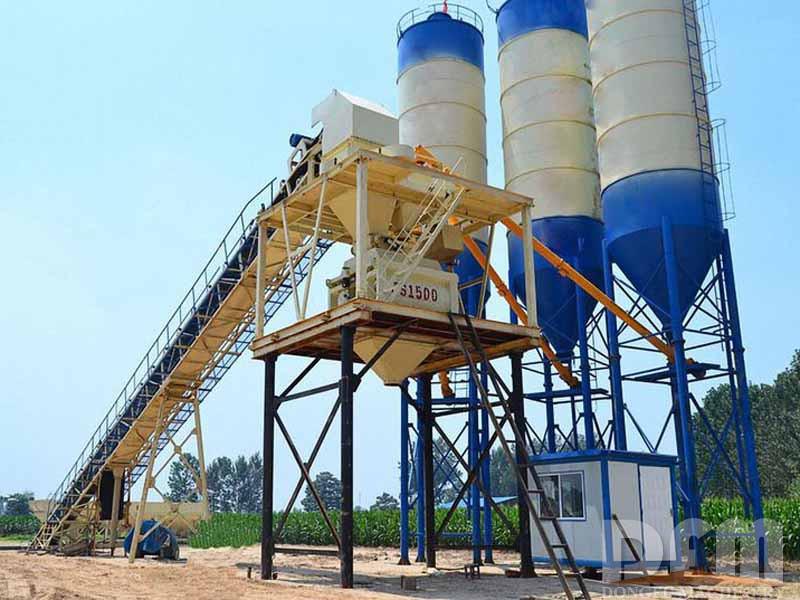

The plant adopts the JS series twin-shaft concrete mixer which has lots of advantages such as mixing easily and efficiently . It has long operating life facilitating maintenance etc.

The mixer uses the latest design procedures including electronic weighing microcomputer control digital display calculating accurately. The material loading system is also the ideal choice for producing high quality concrete.

Model		HZS60	HZS90	HZS120	HZS180
Global parameter (m3/h)	Maximum productivity	60	90	120	180
	Discharging height(m)	4.2	4.2	4.2	4.2
	Working cycle time(s)	60	60	60	60
	Outline dimension(mm)	58445×12376× 18704	58555×12376× 18704	60210×13700× 18704	62900×15000× 19500
	Total power (kw)	105	145	210	288
Mixer	Model	JS1000	JS1500	JS2000	JS3000
Batcher	Model	PLD1600	PLD2400	PLD3200	PLD4800
Pneumatic system	Air compressor	1.5–7	1.8–7	1.8–7	1.8–7
	Discharge pressure(MPa)	0.8	0.8	0.8	0.8
	Displacement(m3/min)	1.67	1.67	1.67	1.67
	Motor power	7.5	11	11×2	11×2
Measurement system	Aggregate weighing accuracy	±2%	±2%	±2%	±2%
	Cement weighing accuracy	±1%	±1%	±1%	±1%
	Water weighing accuracy	±1%	±1%	±1%	±1%
	Additive weighing accuracy	±1%	±1%	±1%	±1%
Total weight		36T	46T	52T	70T
