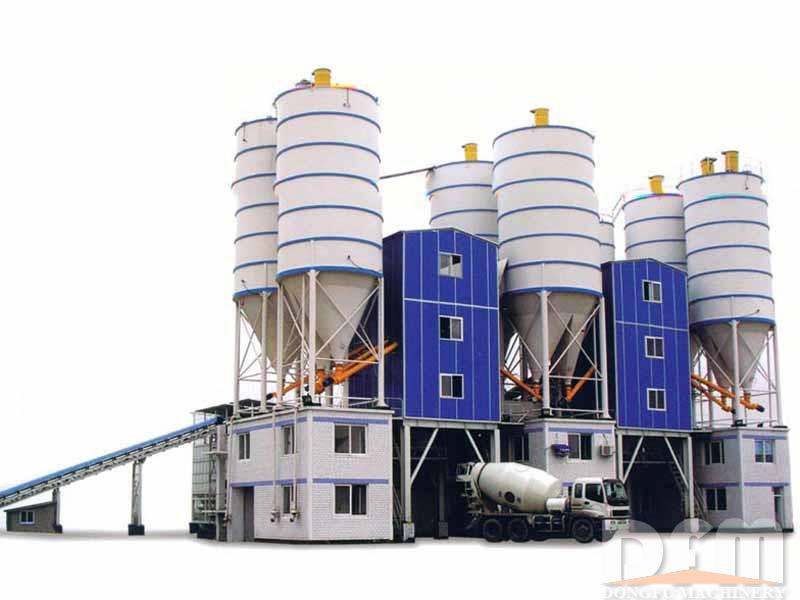

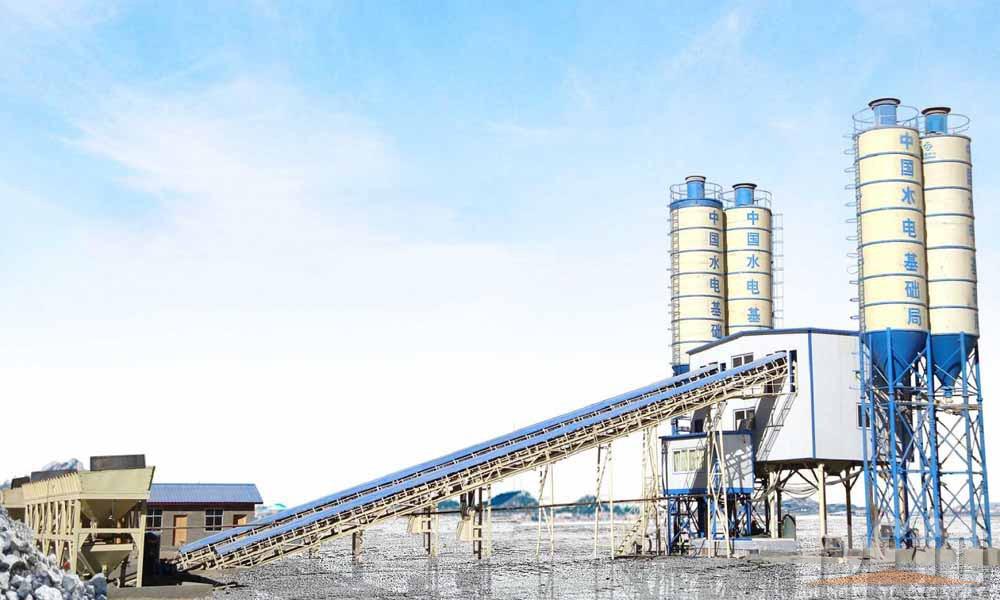

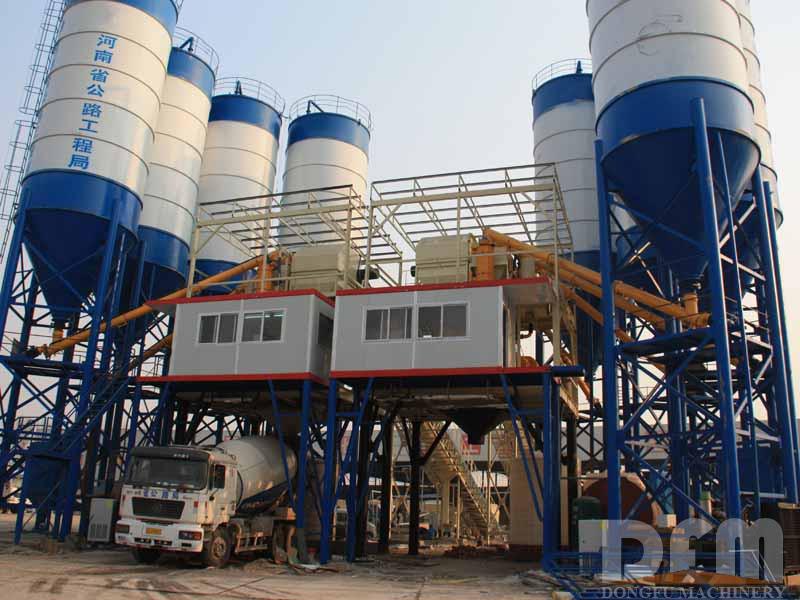

Double Concrete Mixing Plant

Excellent manufacturing team with experience of over 20 years.
All can be customized to meet your needs&boost productivity.
Passed CE&ISO9001:2008 quality attestation.
Long-term cooperated transport company ensure the timely and safe delivery.
One-stop service save your precious time.

Double Concrete Mixing Plant adopts two JS twin-shaft mixer, so it can mix dry-hard concrete, plastic concrete, lightweight aggregate and kinds of mortar. What’s more, due to its high working efficiency and large capacity output, the Double Concrete Mixing Plant is widely used in large and medium sized construction, road, bridge, railway and others. In short, the Double Concrete Mixing Plant is ideal equipment for users to buy.

Features of Double Concrete Mixing Plant:

The mixing system adopts JS series twin-shaft concrete mixer with good mixing homogeneity.

With compact structure of modular organization, which can meet the requirements of container transport, and is convenient for transport and quick installation, disassembly.

Aggregate lifting appliance adopts frequency control, thus providing smooth and reliable operation.

Lubrication system adopts advanced centralized oil lubricating system, convenient for oil supplying, this system is equipped with over voltage warning and low oil level warning, safe and reliable.

Model		HZS25*2	HZS35*2	HZS50*2	HZS75*2	HZS60*2	HZS90*2	HZS120*2	HZS180*2
Global parameter	Maximum productivity (m3/h)	50	70	100	150	120	180	240	360
	Discharging height (m)	1.5–4.2	1.6–4.2	4.2	4.2	4.2	4.2-4.5	4.5	4.5
	Working cycle time (s)	72	72	72	72	60	60	60	60
	Total power (kw)	50*2	75*2	88*2	110*2	105*2	145*2	210*2	288*2
Mixer	Model	JS500*2	JS750*2	JS1000*2	JS1500*2	JS1000*2	JS1500*2	JS2000*2	JS3000*2
Batcher	Model	PLD800*2	PLD1200*2	PLD1600*2	PLD2400*2	PLD1600*2	PLD2400*2	PLD3200*2	PLD4800*2
Pneumatic system	Air compressor	1.0–7	1.0–7	1.5–7	1.8–7	1.5–7	1.8–7	1.8–7	1.8–7
	Discharge pressure (MPa)	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8
	Displacement (m3/min)	1.67	1.67	1.67	1.67	1.67	1.67	1.67	1.67
	Motor power	5.5*2	5.5*2	7.5*2	11*2	7.5*2	11*2	11×2*2	11×2 *2
Measurement system	Aggregate weighing accuracy	±2%	±2%	±2%	±2%	±2%	±2%	±2%	±2%
	Cement weighing accuracy	±1%	±1%	±1%	±1%	±1%	±1%	±1%	±1%
	Water weighing accuracy	±1%	±1%	±1%	±1%	±1%	±1%	±1%	±1%
	Additive weighing accuracy	±1%	±1%	±1%	±1%	±1%	±1%	±1%	±1%
Total weight		32T	46T	56T	74T	72T	92T	104T	140T
