180m³/h Concrete Batching Plant

Model：HZS180
Maximum productivity(m3/h)： 180
Discharging height(m)： 4.2
Working cycle time(s)： 60
Outline dimension(mm)： 62900×15000×19500
Total power (kw)： 288
Total weight： 70T
High performance cost ratio for construction projects

DFM MACHINERY can easily cover its customers requests with its stationary concrete batching plants in different capacities and specifications.

DFM MACHINERY has a wide range of Stationary Concrete Batching Plants which have production capacity from 25 m³/h to 180 m³/h of one mixer. In addition, the capacity of Stationary Concrete Batching Plants with double mixers on the same chassis can reach 240 m³/h to 360 m³/h.

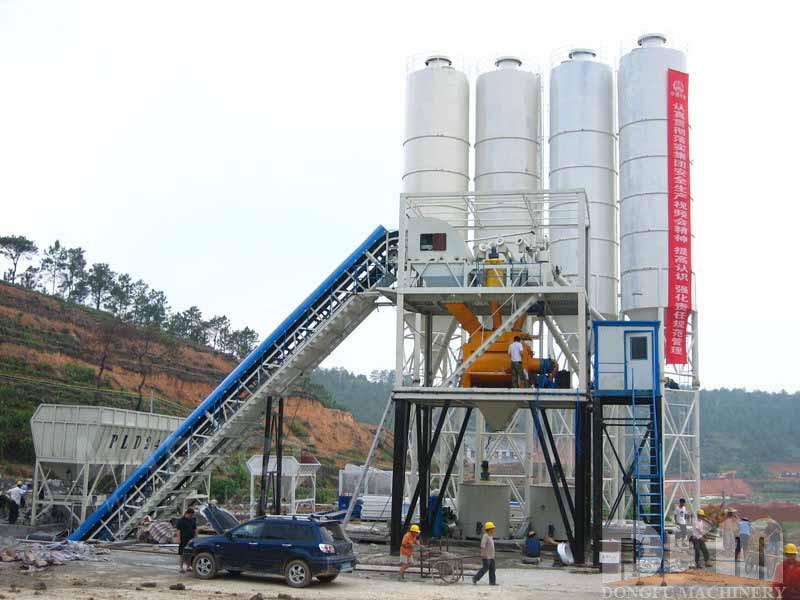

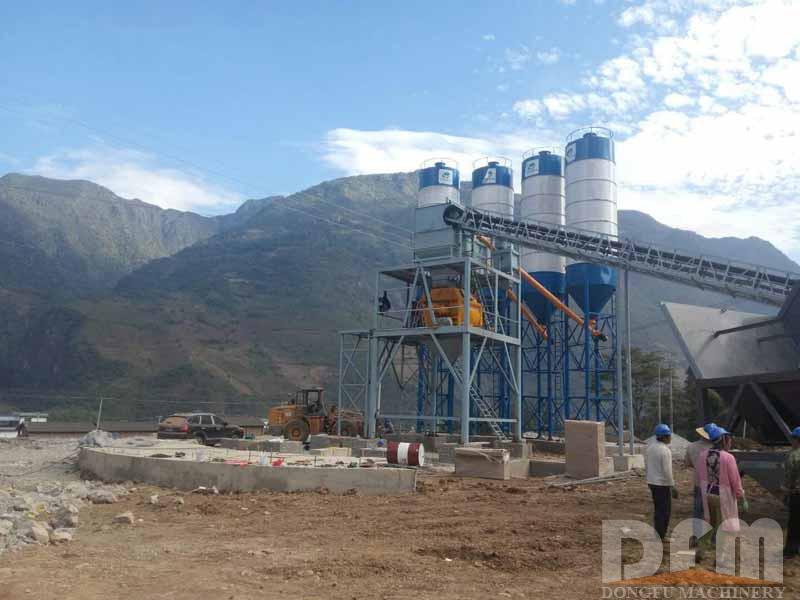

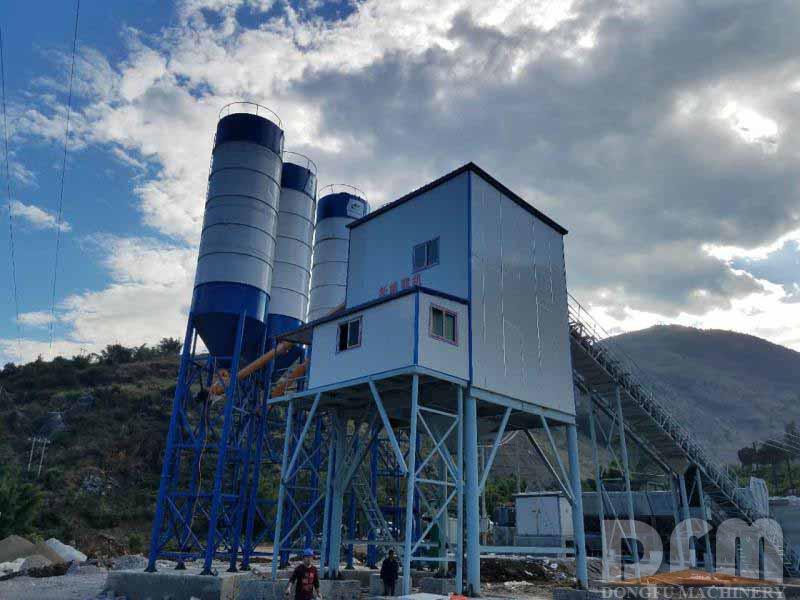

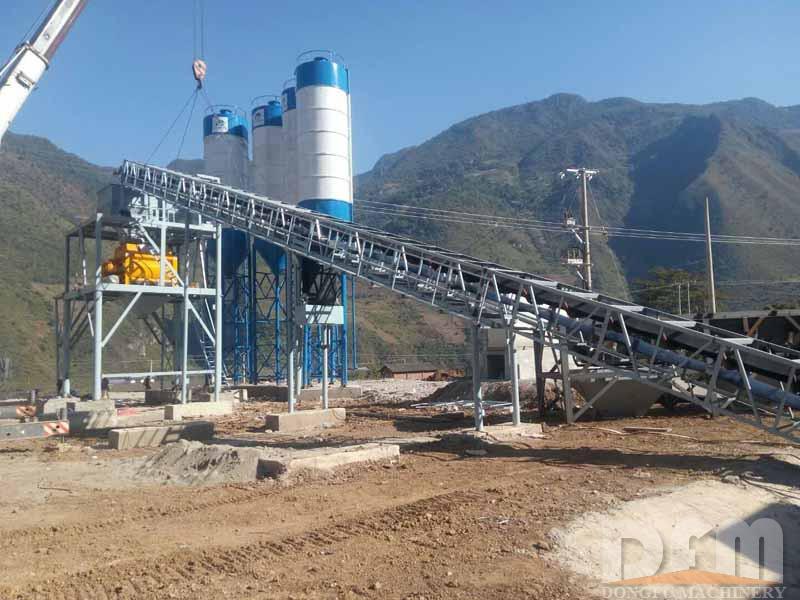

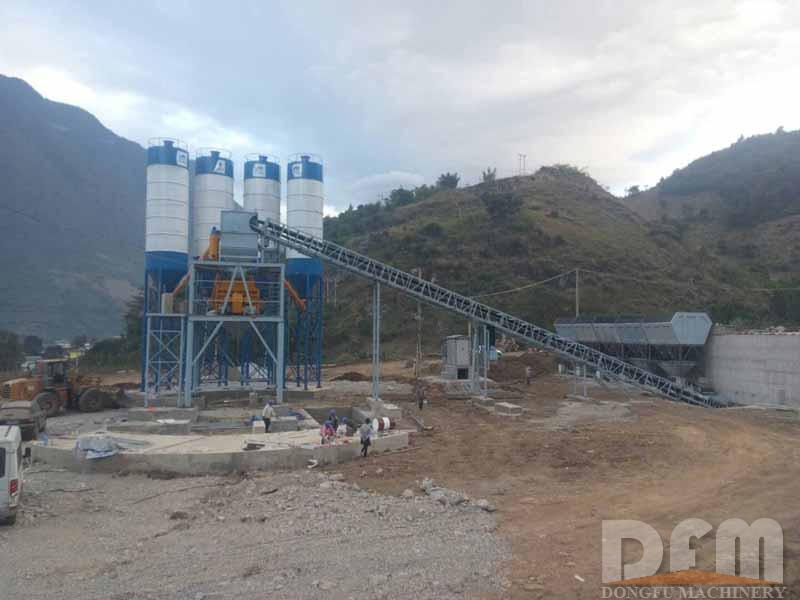

HZS180 Stationary Type Concrete Batching Plant is mostly preferred for high capacity concrete production requirements for special projects and for the projects which will take a long time in the same location.

It is composed of mixing, batching and electrical control system etc.

The Mixing System: The mixer that is JS3000 twin horizontal shaft compulsory mixer with high capacity but less time, the belt feeding and adjustable hydraulic discharge door.

Batching System: PLD4800/Individual batching machine has adopted electric weighing automatically be applied for correction and measure.

Weighing system: The system has buffering device auto compensation function and very high weighing accuracy.

The Quantity of cement silo and screw conveyor can be choosed by users.

Modular design can save the space and easy to install and remove.

All above are the features of HZS180 .It really has the high cost performance.

Model		HZS60	HZS90	HZS120	HZS180
Global parameter (m³/h)	Maximum productivity	60	90	120	180
	Discharging height(m)	4.2	4.2	4.2	4.2
	Working cycle time(s)	60	60	60	60
	Outline dimension(mm)	58445×12376× 18704	58555×12376× 18704	60210×13700× 18704	62900×15000× 19500
	Total power (kw)	105	145	210	288
Mixer	Model	JS1000	JS1500	JS2000	JS3000
Batcher	Model	PLD1600	PLD2400	PLD3200	PLD4800
Pneumatic system	Air compressor	1.5–7	1.8–7	1.8–7	1.8–7
	Discharge pressure(MPa)	0.8	0.8	0.8	0.8
	Displacement(m³/min)	1.67	1.67	1.67	1.67
	Motor power	7.5	11	11×2	11×2
Measurement system	Aggregate weighing accuracy	±2%	±2%	±2%	±2%
	Cement weighing accuracy	±1%	±1%	±1%	±1%
	Water weighing accuracy	±1%	±1%	±1%	±1%
	Additive weighing accuracy	±1%	±1%	±1%	±1%
Total weight		36T	46T	52T	70T
