Model: JS750
Discharging capacity: 750L
Drum capacity: 1200L
Productivity(m3/h): ≥35
Max.aggregate size(Cobble/Crushed Stone)(mm): ≤40/60
Operation Recycle Time(S): 72
Dimension Transport State (mm): 3110*2620*2580
Weight(kg): 5500
The capacities of DFM MACHINERY Twin-Shaft Mixers are 750L,1000L,1500L,2000Land 3000L.

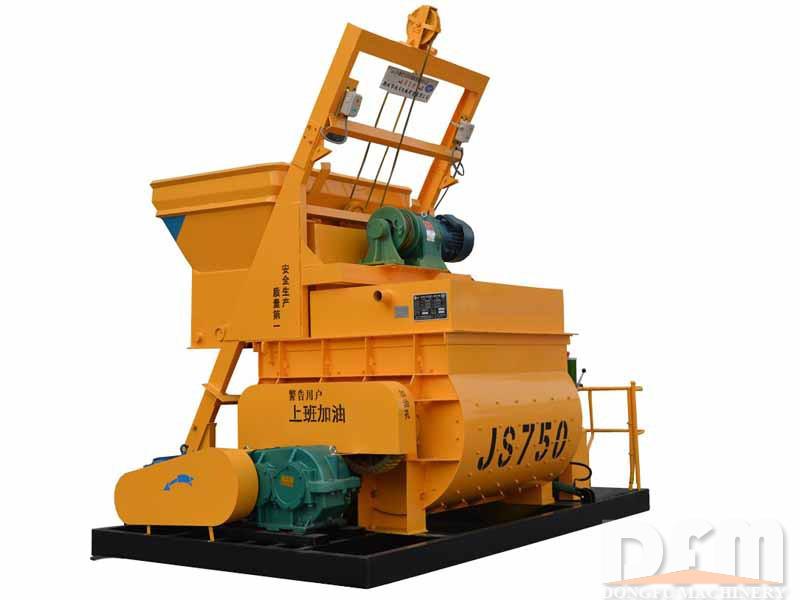

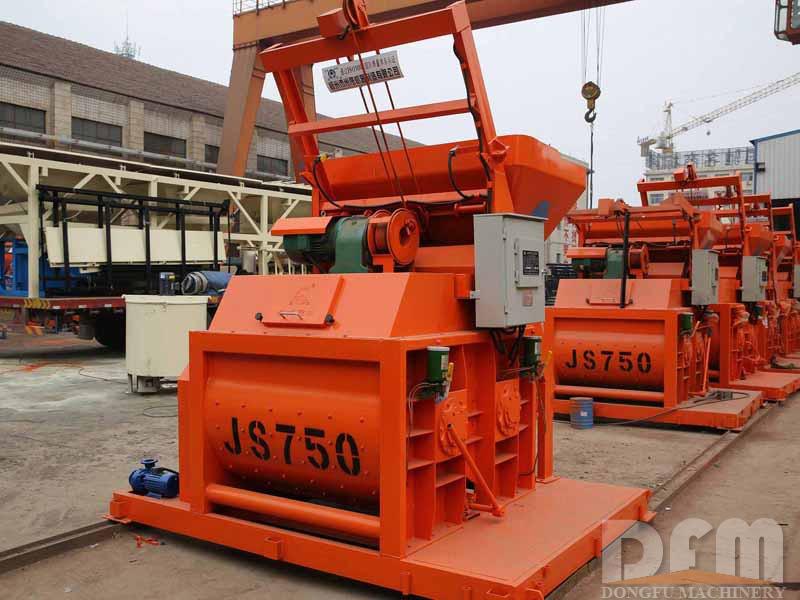

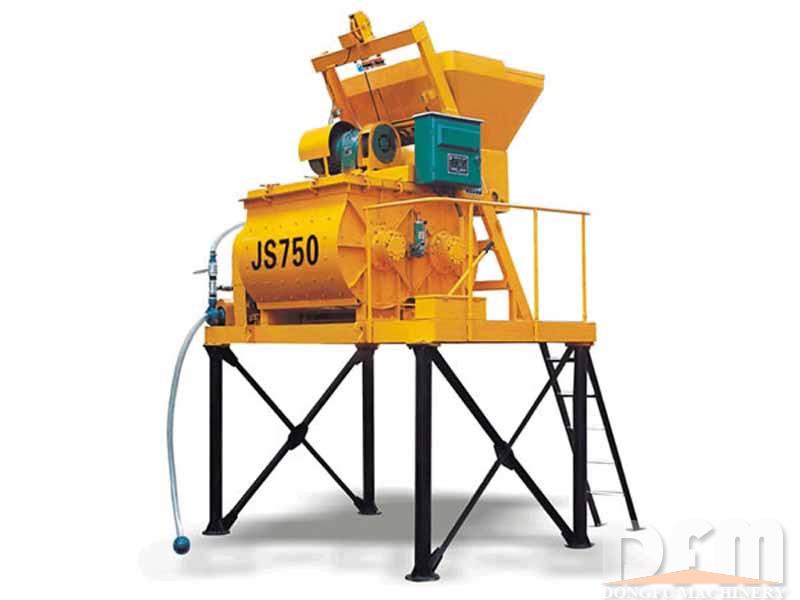

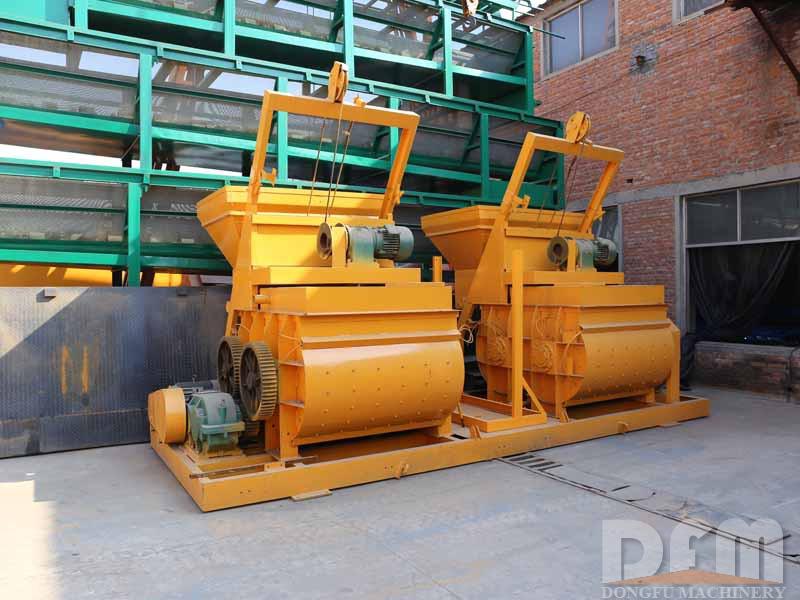

JS750 Concrete Mixer is twin shaft horizontal forced type mixer. It can mix dry hard concrete, plastic concrete, flowing concrete, light weight aggregate concrete and various mortar.
It has dual superiorities of working solely or forming simple concrete mixing plant with PLD series batching machine and can also be the mixer for HZS35 concrete batching plant.
It is applicable to the common construction working site like road, bridge and each kind of precast product factory.
They have reasonable inner structure, high production efficiency, drive reposefully and low noise.
Model | JS750 |
Discharging capacity | 750L |
Drum capacity | 1200L |
Productivity (m3 /h ) | ≥35 |
Max.aggregate size(Cobble/Crushed Stone)(mm) | ≤40/60 |
Operation Recycle Time(S) | 72 |
Dimension Transport State (mm) | 3110*2620*2580 |
Dimension Work State (mm) | 5025*3100*5680 |
Weight(kg) | 5500 |
Mixing Blade Rotate Speed | 26r/min |
Mixing Blade Number | 2x7 |
Mixing Motor Model | Y200L-4 |
Mixing Motor Power | 30kw |
Winch Motor Model | YEZ132M-4 |
Winch Motor Power | 7.5kw |
Water Pump Motor Model | BL18-16-1.1 |
Water Pump Motor Power | 1.5kw |
Discharging Height | 3800mm |
