Model： JS500
Discharging capacity： 500L
Drum capacity： 800L
Productivity(m3/h)： ≥25
Max.aggregate size(Cobble/Crushed Stone)(mm)： ≤60/80
Operation Recycle Time(S)： 72
Dimension Transport State (mm)： 3050*2530*2680
Dimension Work State (mm)： 4461*3050*4180
Weight(kg)： 4000

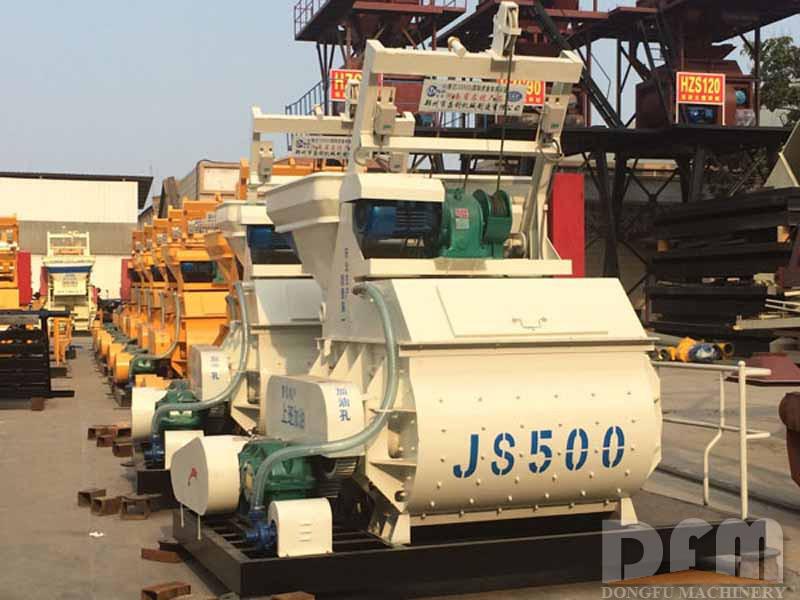

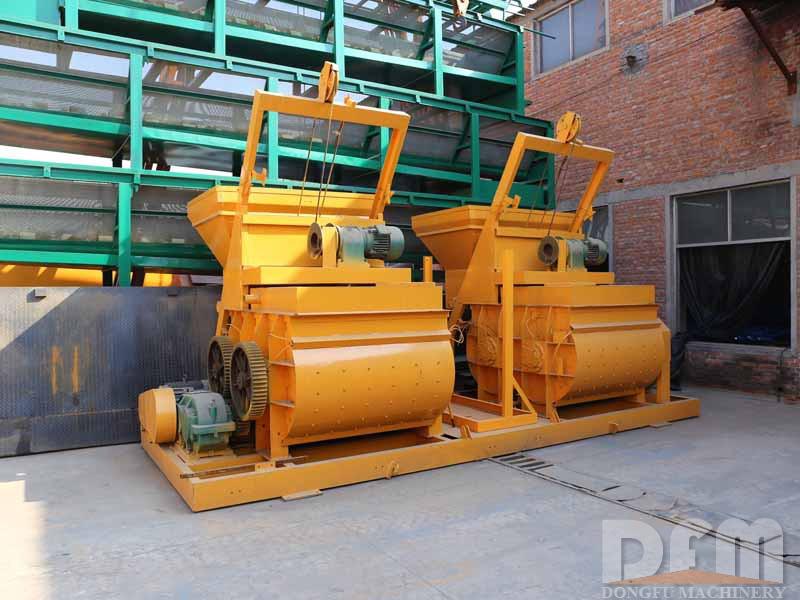

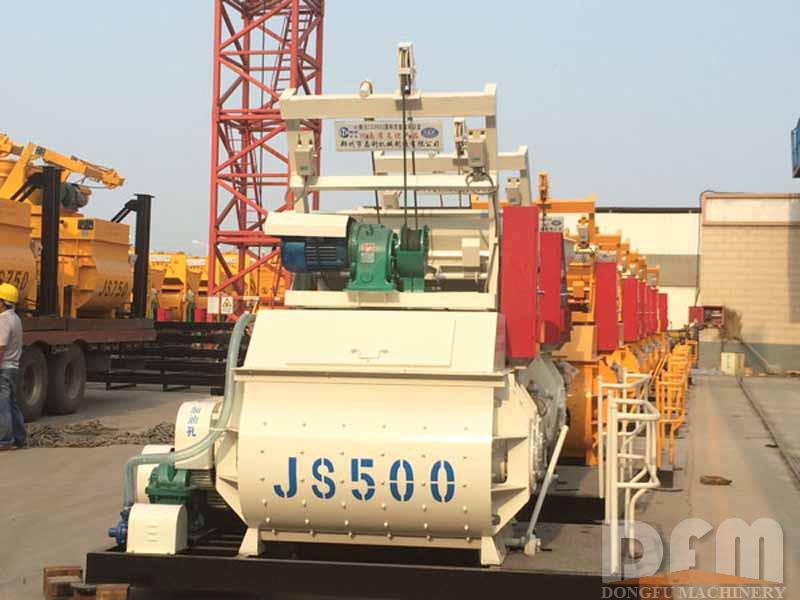

JS500 concrete mixer can mix dry hard concrete plastic concrete flowing concrete light weight aggregate concrete and various mortar.
It could work independently or in HZS25 concrete batching plant with PLD1200. It is widely used in various construction projects with adjustable discharge heights.
Advantages
1. As tank body and machine bracket are fixed mixing axle can avoid withstanding the pressure from material and dead weight of tank which expand the service life of mixing axle;
2. Adopted with electric discharging door to get rid of the disadvantage of any material left by using rotary discharging door; it can offer quick and tidy discharging operation.
Model | JS500 |
Discharging capacity | 500L |
Drum capacity | 800L |
Productivity (m3 /h ) | ≥25 |
Max.aggregate size(Cobble/Crushed Stone)(mm) | ≤60/80 |
Operation Recycle Time(S) | 72 |
Dimension Transport State (mm) | 3050*2530*2680 |
Dimension Work State (mm) | 4461*3050*4180 |
Weight(kg) | 4000 |
Mixing Blade Rotate Speed | 35r/min |
Mixing Blade Number | 2x7 |
Mixing Motor Model | Y180M-4 |
Mixing Motor Power | 18.5kw |
Winch Motor Model | YEZ132S-4 |
Winch Motor Power | 5.5kw |
Water Pump Motor Model | BL12-12-1.1 |
Water Pump Motor Power | 1.1kw |
Discharging Height | 3800mm |
