Model： JS1000A
Discharging capacity： 1000L
Drum capacity： 1600L
Productivity(m3/h)： ≥50
Operation Recycle Time(S)： 60
Dimension Transport State(mm)： 4320*2200*3300
Weight(kg)： 8700

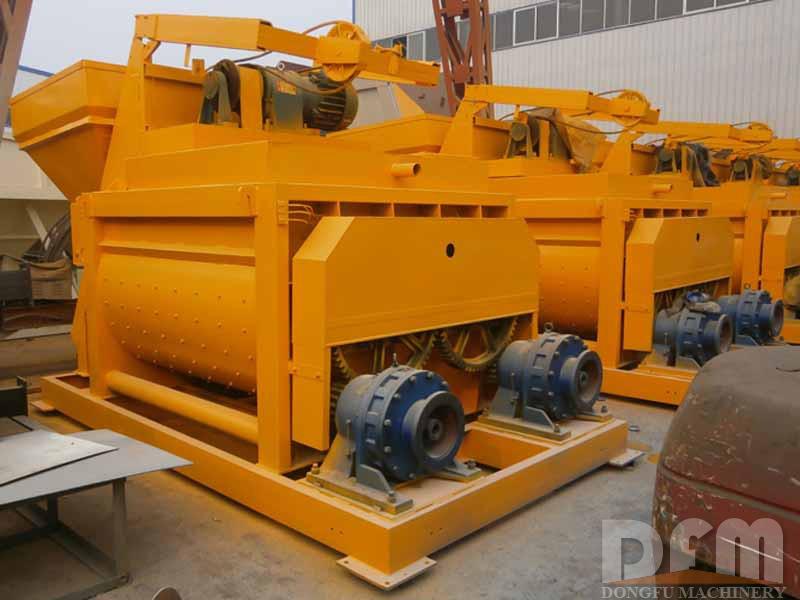

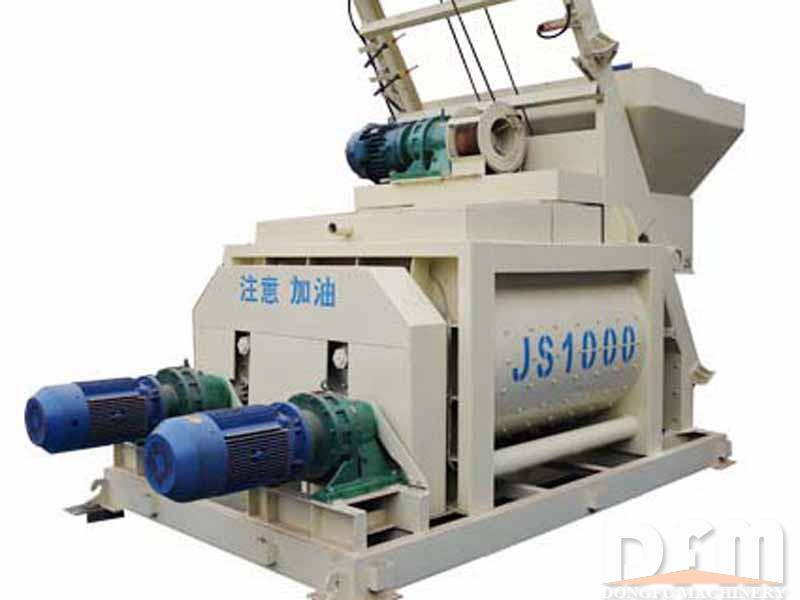

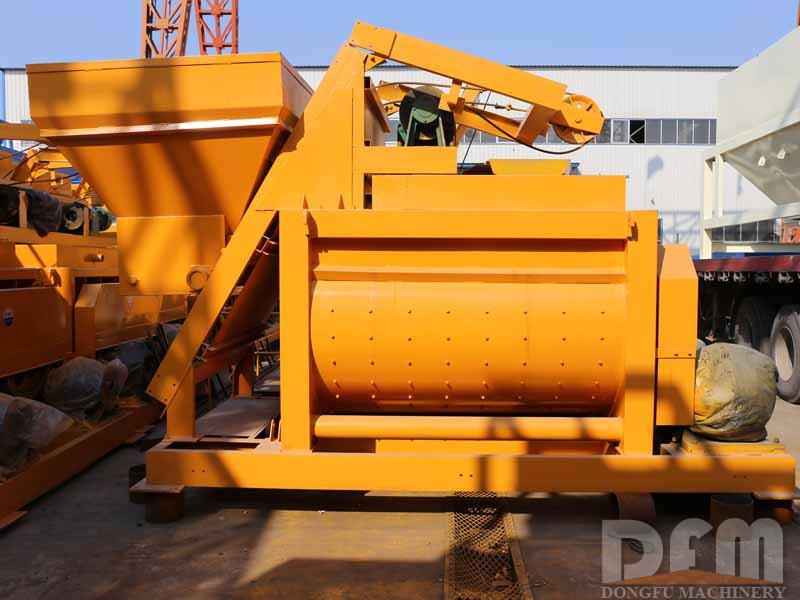

JS1000A concrete mixer can mix the plastic and half-dry hard concrete, fluid concrete and light aggregate concrete. It is often used to build roads, bridges, ports or other construction projects.

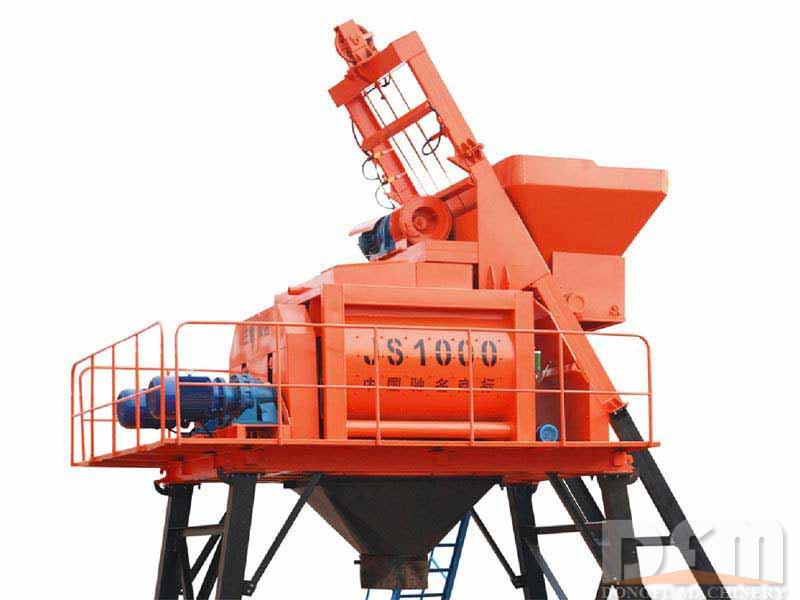

It can work independently or in HZS50/60 concrete batching plant with PLD1600.
Mixing Drum: High-resistant manganese steel alloys;
Twin shafts: mix aggregates compulsively and evenly.
Twin Motors and Reducers: meet different needs of mixer in rev speed & power; Simple structure & low cost.
Hydraulic Discharging: Great power and high efficiency; Push discharging door smoothly to reduce the damage of discharging door.
Model | JS1000A |
Discharging capacity | 1000L |
Drum capacity | 1600L |
Productivity (m3 /h ) | ≥50 |
Max.aggregate size(Cobble/Crushed Stone)(mm) | ≤60/80 |
Operation Recycle Time(S) | 60 |
Dimension Transport State (mm) | 4320*2200*3300 |
Dimension Work State (mm) | 10460*3400*9050 |
Weight(kg) | 8700 |
Mixing Blade Rotate Speed | 29.6r/min |
Mixing Blade Number | 2x8 |
Mixing Motor Model | Y180M-4 |
Mixing Motor Power | 2x18.5 |
Winch Motor Model | YEZ160L-4 |
Winch Motor Power | 13kw |
Water Pump Motor Model | 80JDB-45 |
Water Pump Motor Power | 3kw |
Discharging Height | 3800mm |
