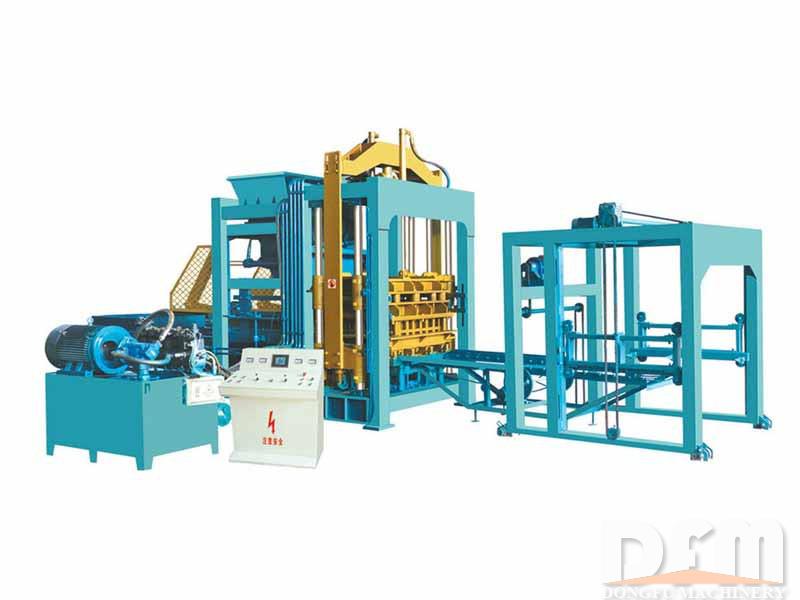

QT10-15 Concrete Block Making Machine

Model: QT10-15
Exciting force (KN): 100
Vibration frequency(HZ): 0-60
Power(KW): 52.28
Forming type: Fully automatic loading and molding
Forming cycle(S): 15-20
Outline dimension: 7500×2500×3020
Pallet size: 1220×900×25
Normal output: 14000

QT10-15 Fully-auto hydraulic cheap Concrete Block Making Machine:

1.360 scatter mixer , greatly inproves the density and intensity of blocks.

2. Hydraulic system: hydraulic spare parts be ordered according our block machine.

3. All material and spare parts selected according international CE standard, Carbon dioxide pertection weldig will assure line stable running.

4. We choose MITSUBISHI / SIEMENS programmable logic controller (PLC)

5. Mold: newest heat treatment device assure longer mold life.

Model	Products	Size	Block Qty/Plate	PCS/Hour	PCS/8Hours
QT10-15	Hollow Blocks	390×190×190	10	2400	19200
	Perforated Blocks	240×115×90	24	5760	46080
	Solid Blocks	240×115×53	48	11520	92160

Model	QT10-15
Mixer	JS750
Batcher	PLD1200
Cement Silo	sheet-assembled 100T
Screw Conveyer	LSY 219*8m
Forming type	Fully automatic loading and molding
Control type	PLC Semi-automatic control PLC
Forming cycle (S)	15-20
Outline dimension	7500×2500×3020
Weight (T)	11
Pallet size	1220×900×25
