Model： JS2000
Discharging capacity： 2000L
Drum capacity： 3200L
Productivity (m3/h )： ≥120
Max.aggregate size(Cobble/Crushed Stone)(mm)： ≤80/100
Operation Recycle Time(S)： 60
Dimension Transport State (mm)： 3500*2400*2152
Weight(kg)： 7500

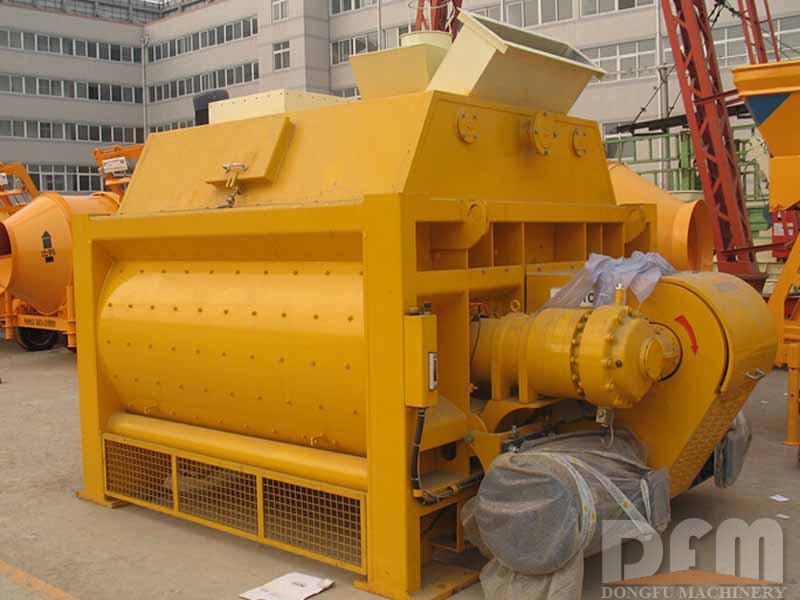

JS2000 concrete mixer is well applied in mixing various materials evenly with twin horizontal shaft & compulsory force. The efficient in producing concrete is 120m3/h. High-resistant manganese steel alloys plates and blades makes it has long service life. Besides it is environment-friendly with operational wear-resistant outside cover.
It can work independently or in HZS120 concrete batching plant with PLD3200 batching machine.
1. Made of high-resistant manganese steel Great power & High productivity with large capacity.
2. Four pump cores supply oil directly to shafts' end lower failure rate of lubricating system.
3. Easy to observe with simple design.
Model | JS2000 |
Discharging capacity | 2000L |
Drum capacity | 3200L |
Productivity (m3 /h ) | ≥120 |
Max.aggregate size(Cobble/Crushed Stone)(mm) | ≤80/100 |
Operation Recycle Time(S) | 60 |
Dimension Transport State (mm) | 3500*2400*2152 |
Weight(kg) | 7500 |
Mixing Blade Rotate Speed | 24.5r/min |
Mixing Blade Number | 2x8 |
Mixing Motor Model | Y250M-6 |
Mixing Motor Power | 2x37 |
Discharging Height | 4300mm |
