Discharging capacity： 3000L
Drum capacity： 4800L
Productivity (m3/h )： ≥150
Max.aggregate size (Cobble/Crushed Stone)(mm)： ≤80/120
Operation Recycle Time(S)： 60
Dimension Transport State (mm)： 4050*2680*2150
Weight(kg)： 9200

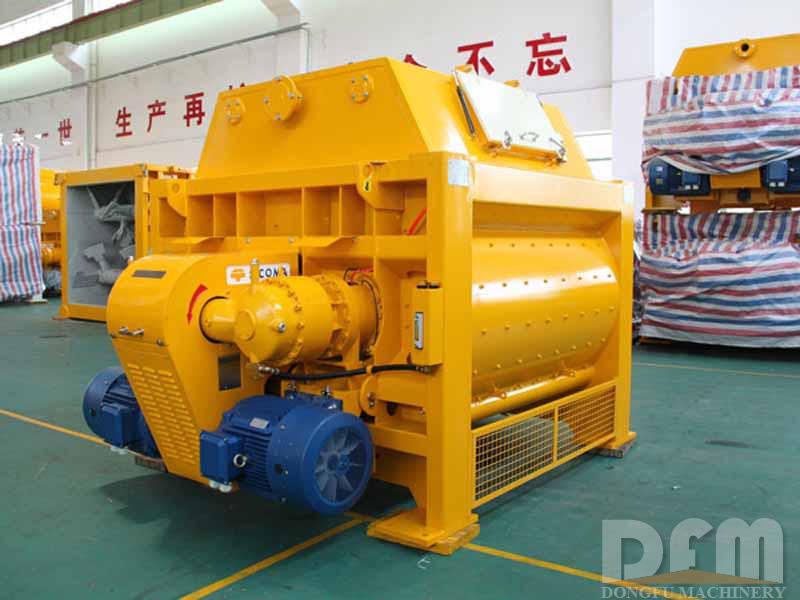

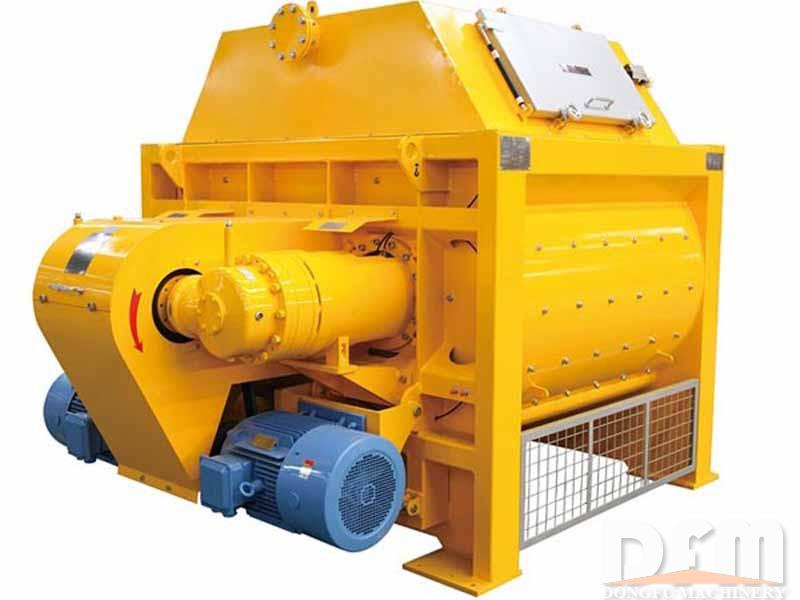

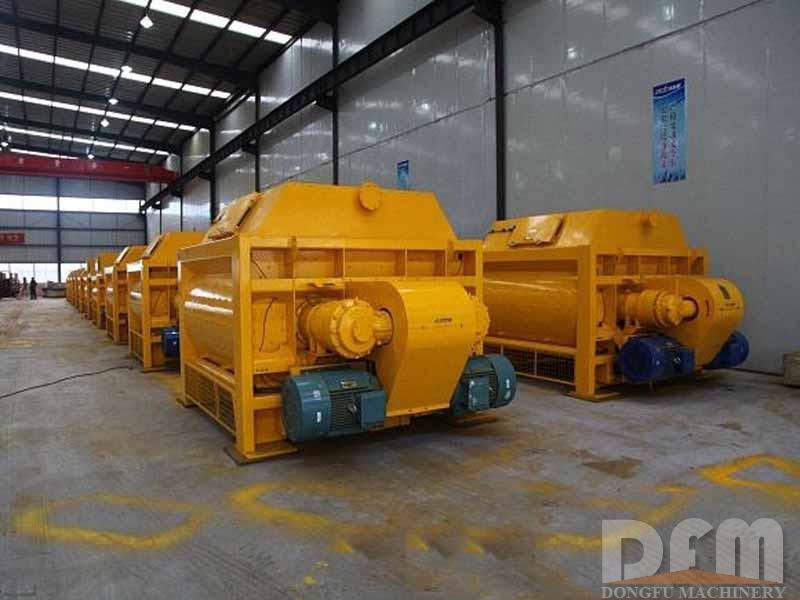

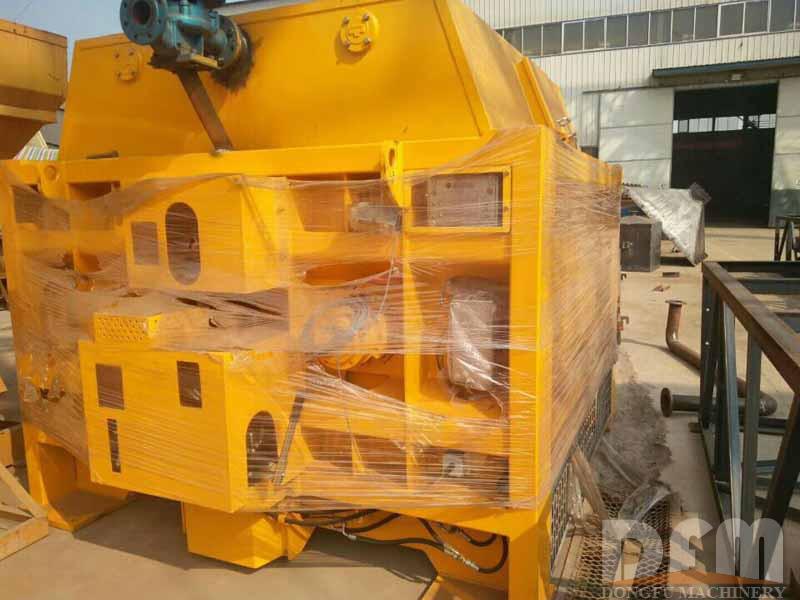

JS3000 concrete mixer is well applied in mixing various materials evenly with twin horizontal shaft & compulsory force. The efficient in producing concrete is 180m3/h. High-resistant manganese steel alloys plates and blades makes it has long service life. Besides it is environment-friendly with operational wear-resistant outside cover.
It can work independently or in HZS180 concrete batching plant with PLD4800 batching machine.
1. Made of high-resistant manganese steel Great power & High productivity with large capacity.
2. Four pump cores supply oil directly to shafts' end lower failure rate of lubricating system .
3. Easy to observe with simple design.
Model | JS3000 |
Discharging capacity | 3000L |
Drum capacity | 4800L |
Productivity (m3 /h ) | ≥150 |
Max.aggregate size(Cobble/Crushed Stone)(mm) | ≤80/120 |
Operation Recycle Time(S) | 60 |
Dimension Transport State (mm) | 4050*2680*2150 |
Weight(kg) | 9200 |
Mixing Blade Rotate Speed | 21r/min |
Mixing Blade Number | 2x10 |
Mixing Motor Model | Y280L-6 |
Mixing Motor Power | 2x55 |
Discharging Height | 4300mm |
