Model :JS1500A
Discharging capacity :1500L
Drum capacity: 2400L
Productivity(m3/h): ≥75
Max.aggregate size(Cobble/Crushed Stone)(mm): ≤60/80
Operation Recycle Time(S) :60
Dimension Transport State (mm) :4720*2200*3000
Weight(kg) :8700

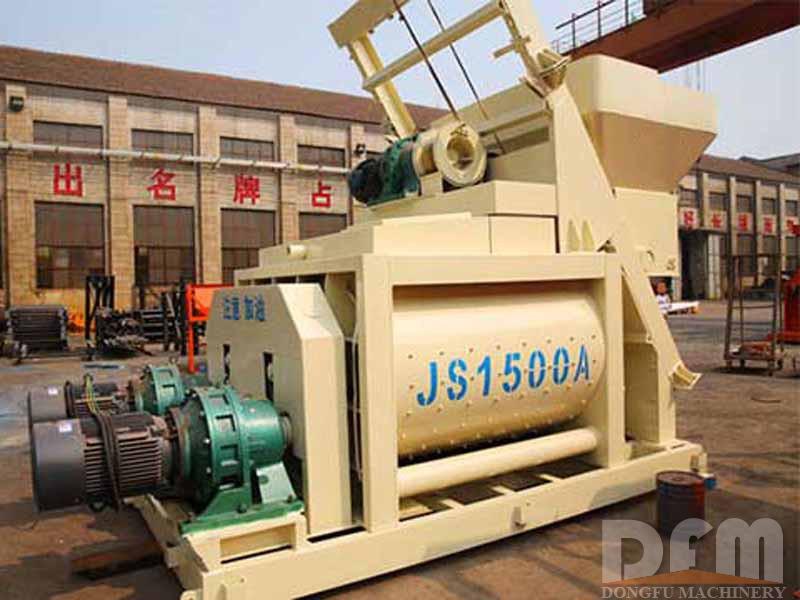

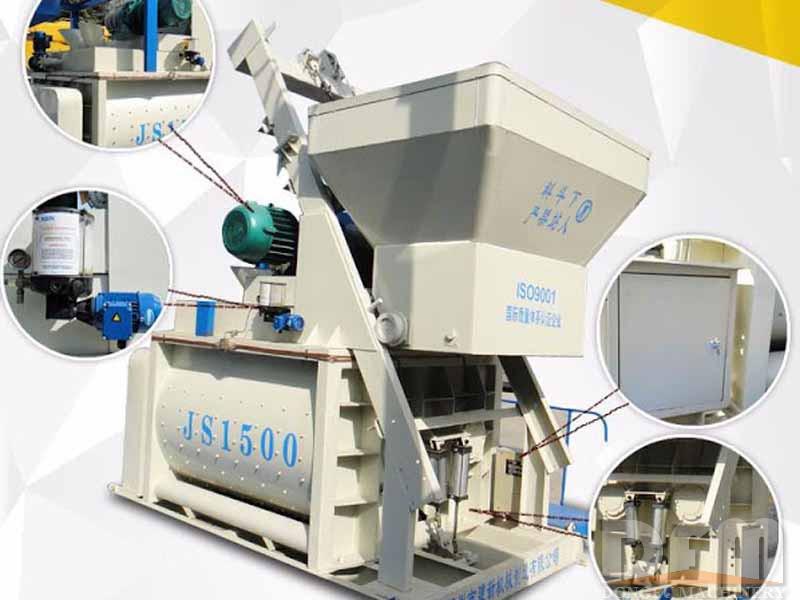

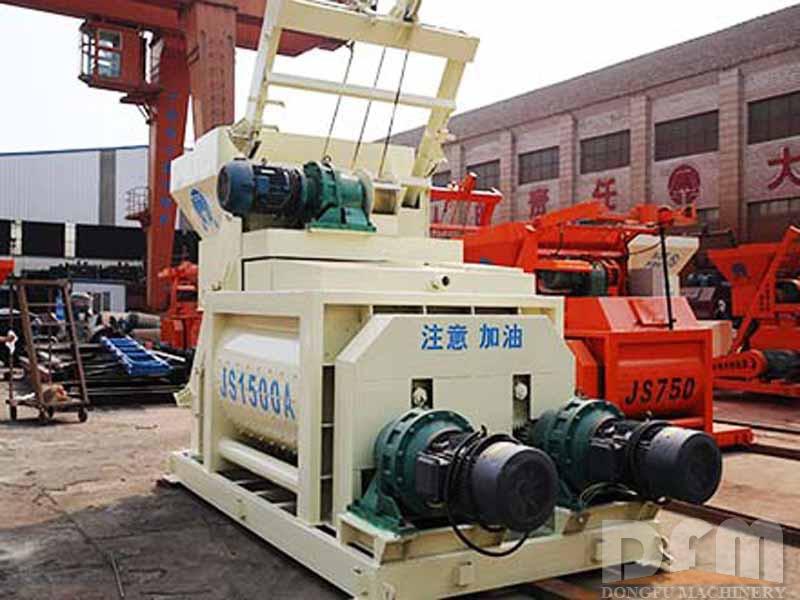

JS1500A Concrete Mixer is twin shaft horizontal forced type mixer equipped with skip hoist. It can mix dry hard concrete, plastic concrete, flowing concrete and various mortar. It is often used to build roads, bridges, ports and other construction projects.
It can work independently or in HZS75 concrete batching plant with PLD2400 batching machine.
Mixing Drum: High-resistant manganese steel alloys;
Twin shafts: mix aggregates compulsively and evenly.

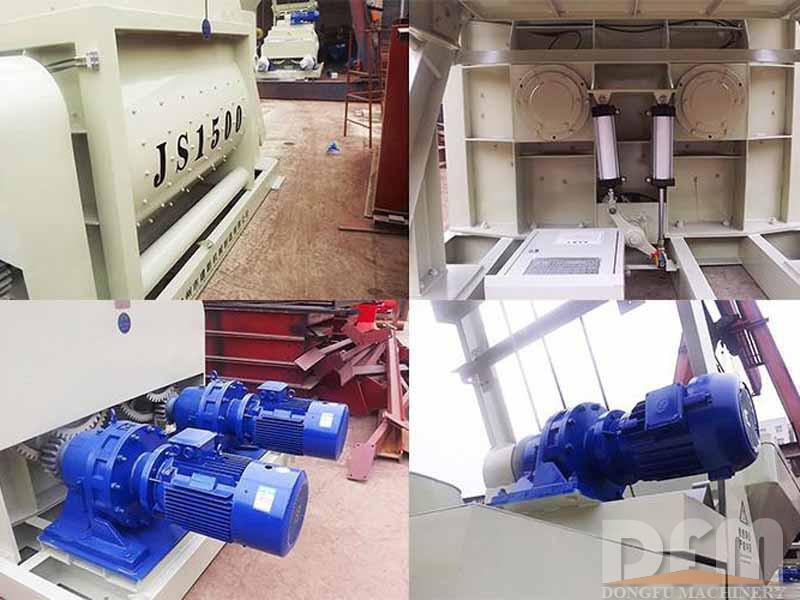

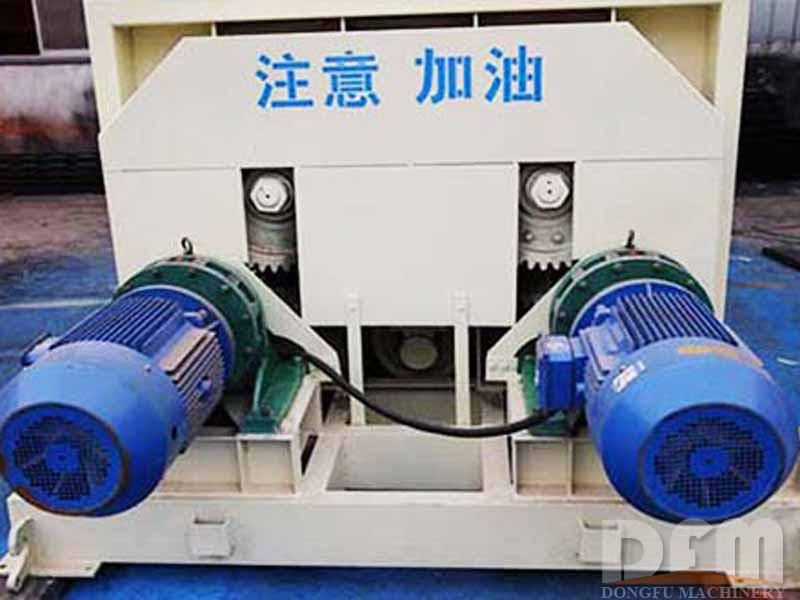

Twin Motors and Reducers: meet different needs of mixer in rev speed & power; Simple structure & low cost .
Hydraulic Discharging: Great power andhigh efficiency; Push discharging door smoothly to reduce the damage of discharging door.
Model | JS1500A |
Discharging capacity | 1500L |
Drum capacity | 2400L |
Productivity (m3 /h ) | ≥75 |
Max.aggregate size(Cobble/Crushed Stone)(mm) | ≤60/80 |
Operation Recycle Time(S) | 60 |
Dimension Transport State (mm) | 4720*2200*3000 |
Weight(kg) | 8700 |
Mixing Blade Rotate Speed | 29.6r/min |
Mixing Blade Number | 2x8 |
Mixing Motor Model | Y180M-4 |
Mixing Motor Power | 2x18.5 |
Winch Motor Model | YEZ132M-4 |
Winch Motor Power | 13kw |
Water Pump Motor Model | BL18-16-1.1 |
Water Pump Motor Power | 3kw |
Discharging Height | 3800mm |
