1.Excellent manufacturing team with experience of over 30 years.
2.All can be customized to meet your needs&boost productivity.
3.Passed CE&ISO9001:2008 quality attestation.
4.Long-term cooperated transport company ensure the timely and safe delivery.
5.One-stop service save your precious time.

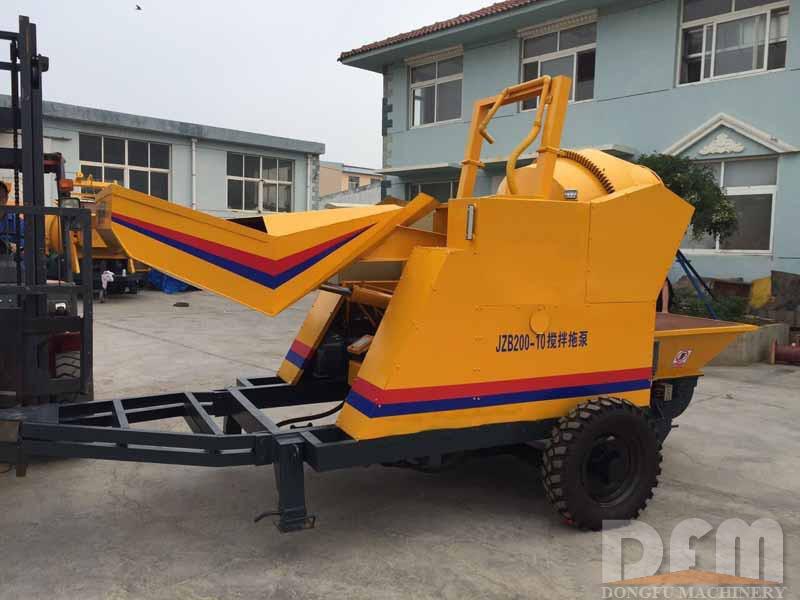

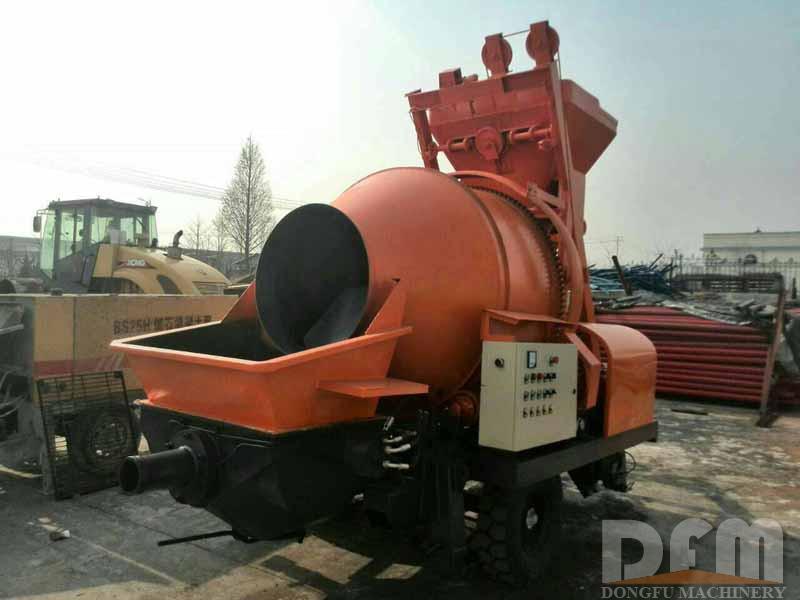

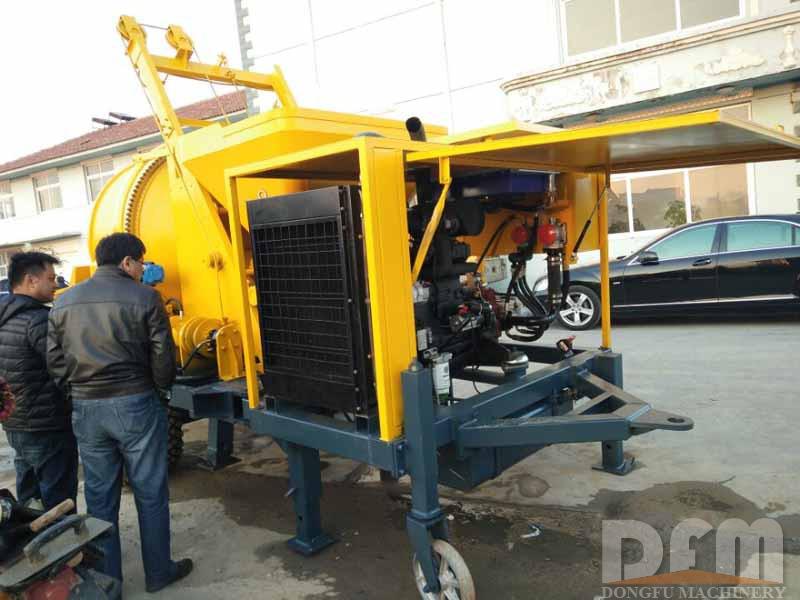

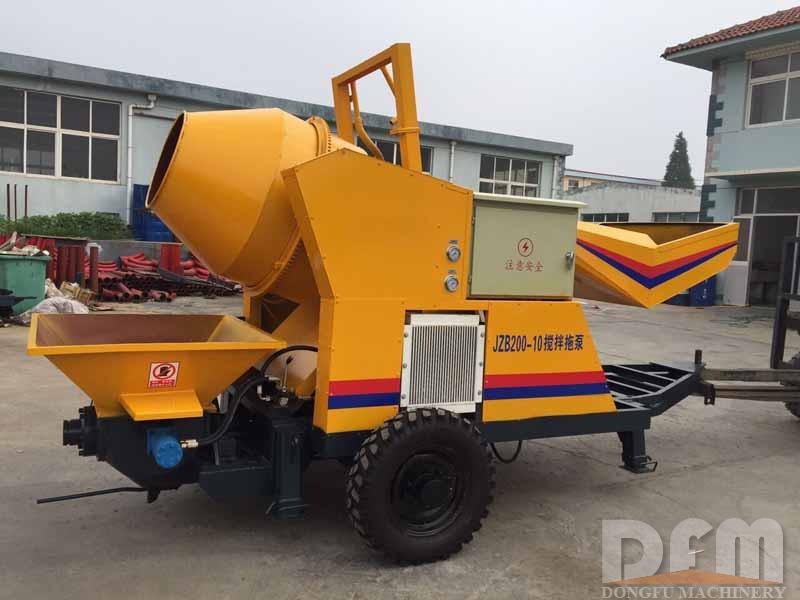

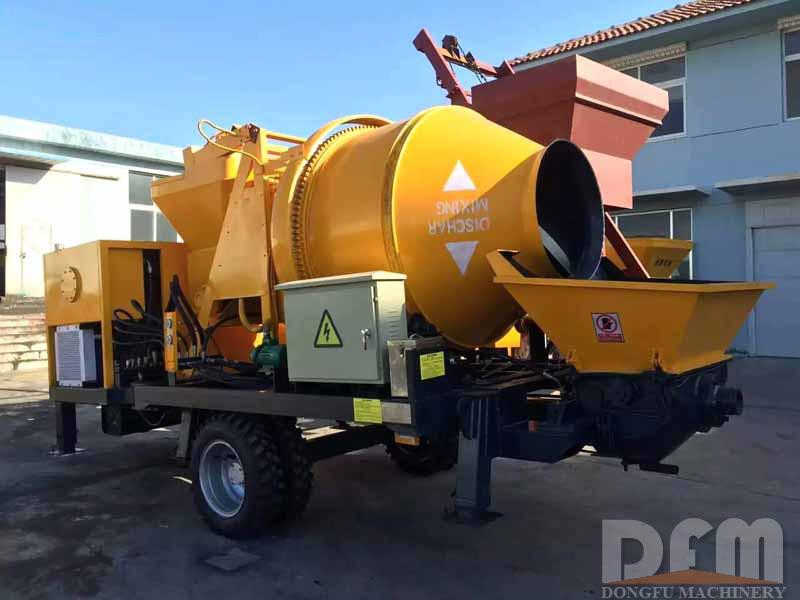

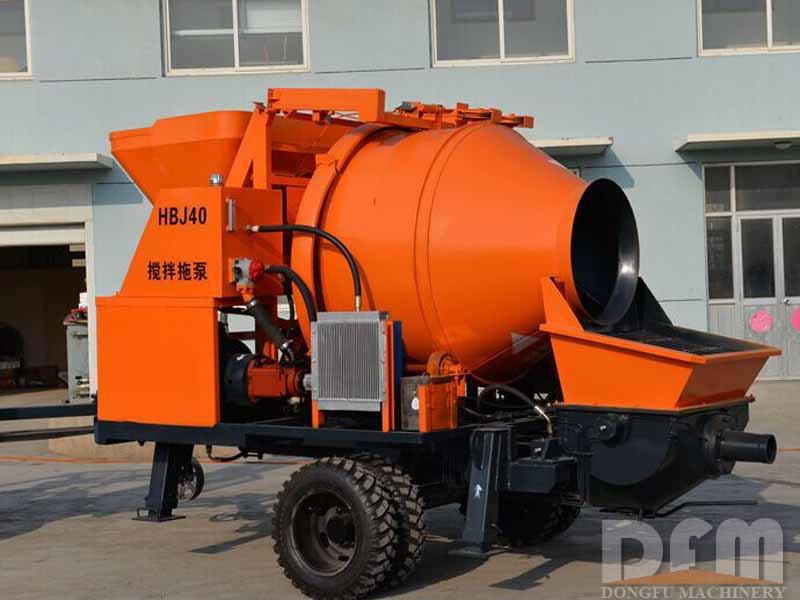

The concrete mixer pump is compact structure, can pump both big & fine size concrete, slurry and so on. It is used in the project of small capacity and easy movable. These mixer pumps also have diesel type, which can use in the place without electricity.
● with experienced technology, the pump have reliable quality.
● with double layer design, the electric control panel have good sealed, water@dust proof.
● famous brand for PLC, so it is easy to control.
● use wear resistant alloy material , the mixer can use long time.
● with double raw tires, the machine can move in either smooth road or bumpiness road.
Technical Data | JBS30 | JBS40 | JBS30R | JBS40R |
Max. Theo. Concrete Output (cbm/h) | 24 | 30 | 32 | 40 |
Max. Concrete Pumping Pressure(MPa) | 10 | 8 | 10 | 8 |
Max Pumping Distance (m) (Vertical/Level) | 500/120 | 400/100 | 500/120 | 400/100 |
Power System | Electric | Electric | Diesel Engine | Diesel Engine |
Main Motor Power(KW) | 45 | 45 | 62.5 | 62.5 |
Rated speed(r/min) | 1480 | 1480 | 2000 | 2000 |
Main Oil Pump Discharge(ml/min) | 112 | 140 | ||
Concrete Tank Diameter/Stoke(mm) | 160*1000 | 180*1000 | 160*1000 | 180*1000 |
Main Oil Pump Tank Diameter*Stoke(mm) | 100*1000 | 100*1000 | 100*1000 | 100*1000 |
Hoist Hopper Volume (cbm) | 0.4 | 0.4 | 0.4 | 0.4 |
Max. Aggregate Size(mm) | 40/30/25 | 40/30/25 | 40/30/25 | 40/30/25 |
Discharge Pipe Diameter(mm) | 140 | 150 | 140 | 150 |
Mixer Input Volume(m3) | 0.56 | 0.56 | 0.56 | 0.56 |
Mixer Output Volume(m3) | 0.45 | 0.45 | 0.45 | 0.45 |
Mixing Motor Power(KW) | 5.5 | 5.5 | ||
Elevating Motor Power (KW) | 4.5 | 4.5 | ||
Dimensions(L*W*H)(mm) | 4200*2300*2600 | 4800*2300*2600 | 4800*2300*2600 | 4800*2300*2600 |
Total weight (KG) | 5500 | 5800 | 6000 | 63000 |
