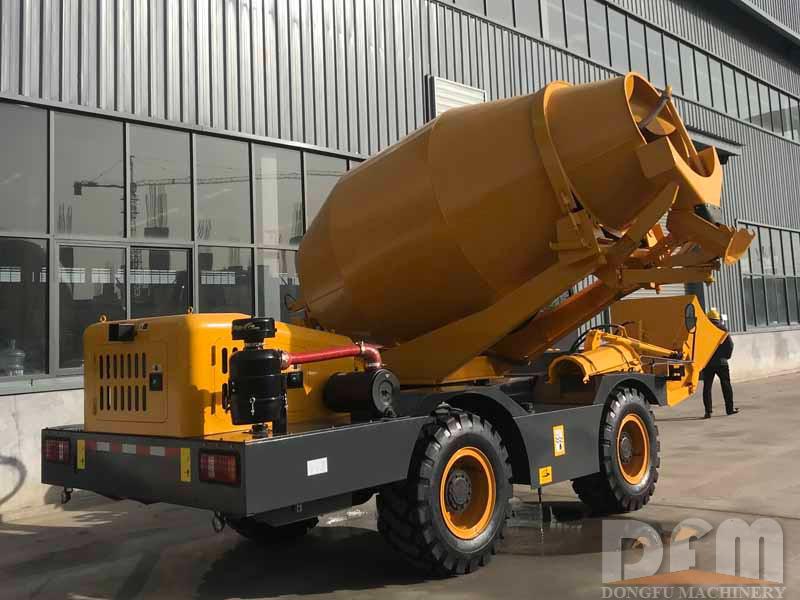

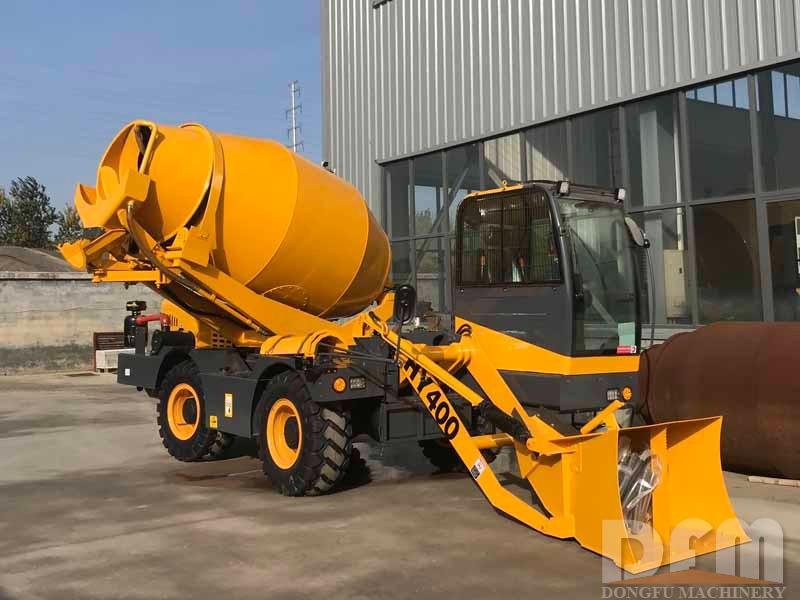

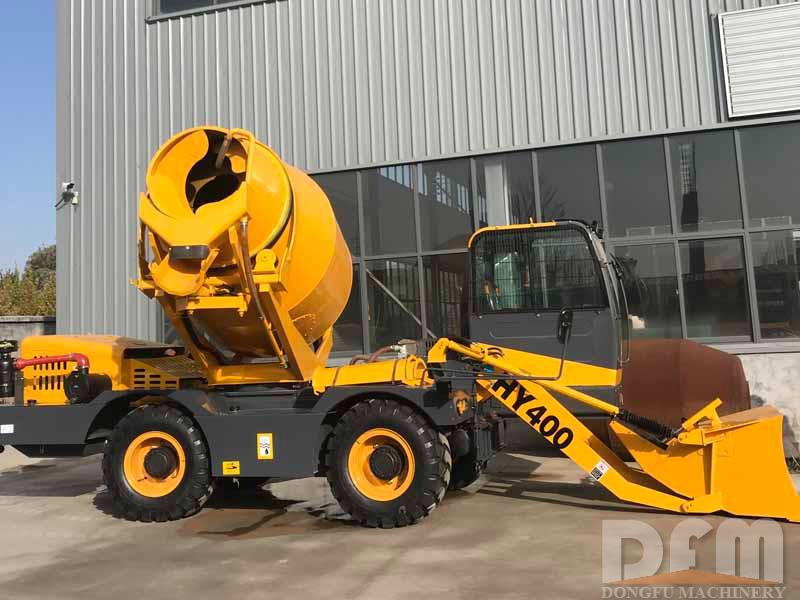

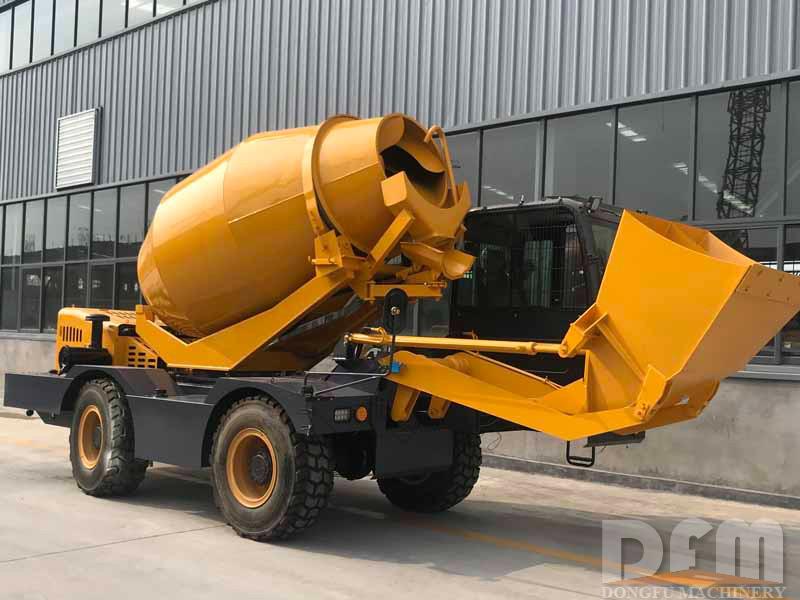

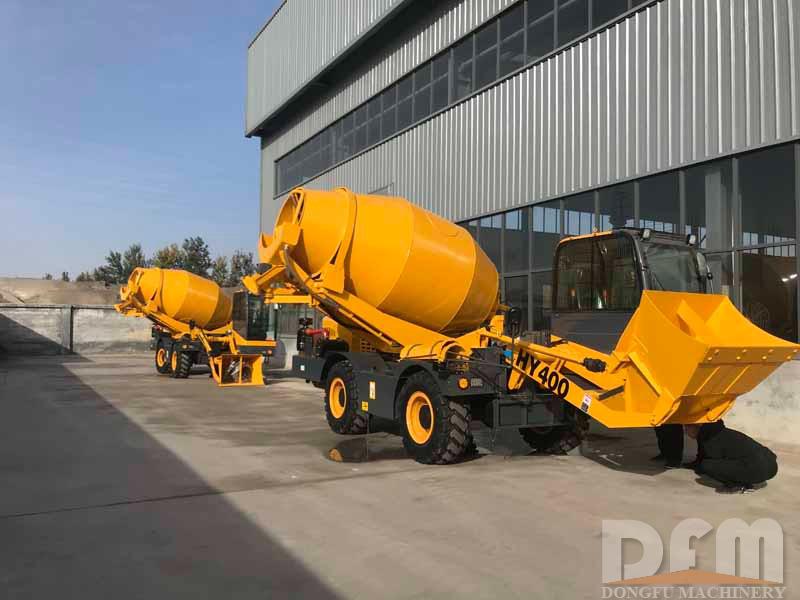

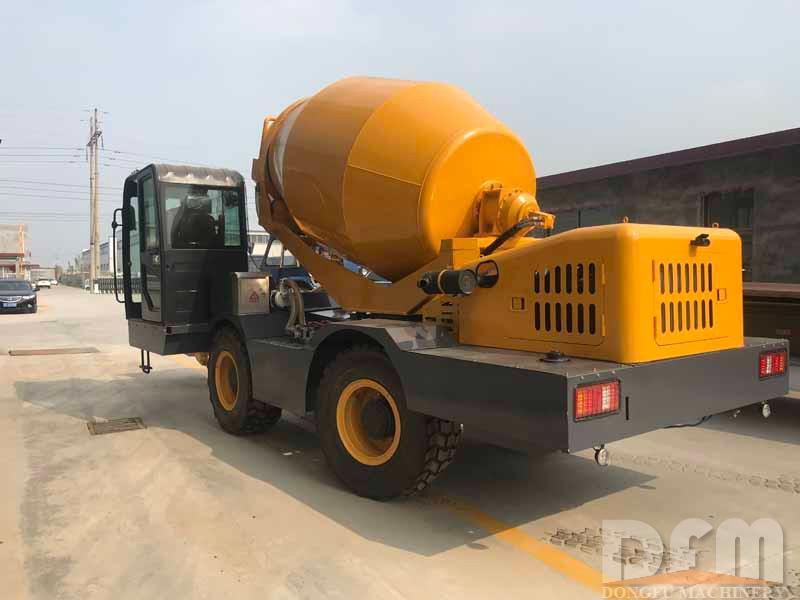

Self Loading Concrete Mixer 4.0 m3

Yunnei 92KW engine
Concrete output productivity 4.0 cbm
With 270°rotation function
double reverse camera .
Air conditioner
Automatic weighting system with printer
4 batches per hour.
Hydraulic Torque Converter Transmission,
4 wheel drive ,2 wheel steering.
16/70-20tyres .
Hydraulic swing motor ,
automatic upper water system ,with pump and pipes.

Introduction

Self Loading Concrete Mixer is a kind of multifunctional machinery which combines the transit mixer, concrete mixer and wheel loader together. It can automatically load, measure, mix and discharge concrete mixture. The self loading concrete mixer is just like a truck and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone.

The wide cabin windscreen and the specially designed loading arms dramatically improve visibility during casting operations. This high-productivity self loading concrete mixer is price-worth, easy to use, features excellent daily performance and reliability.

Specification

Model	BTSL500	BTSL1000	BTSL2000	BTSL2600	BTSL3500
Capacity	0.5m3	1m3	2m3	2.6m3	3.5m3
Drum Volume	1.6m3	2.2m3	4m3	4.65m3	5.3m3
Rotation Speed	13r/min	13r/min	13r/min	13r/min	20r/min
Weighing System	Configure the electronic hydraulic weighing system to weigh water, cement, sand, and aggregate, Weighing number showed on the cabin display.
CAB	Configure with driving image / Closed cab with heating / cooling system / Tilting front window / Hommization seat with flexible suspension and height adjustment.
Engine Model	QC2105	YN27GBZ	YC4D85Z-T21	YC4T22T-105	YCD4J22G
Engine Power	28.6kw	55kw	67kw	78kw	85kw
Drive Form	4*2	4*4	4*4	4*4	4*4
Dimensions (LWH)	4950x1500x2400mm	5700x2100x2800mm	6700x2500x3400mm	6700x2500x3400mm	7830x2680x3300mm
