XF-100 Concrete Reclaimer System

Model：XF-100
Sieving Capacity ：20-30
Separate Stone Size： Φ>5
Separate Sand Size： Φ1-5
Total Motor Power(kw) ：12
Mixing Vehicle Quantity ：10-30
Host Weight： 3540
Host Outline Dimension(m)： 6.36×1.75×2.393
Total Weight ：7T

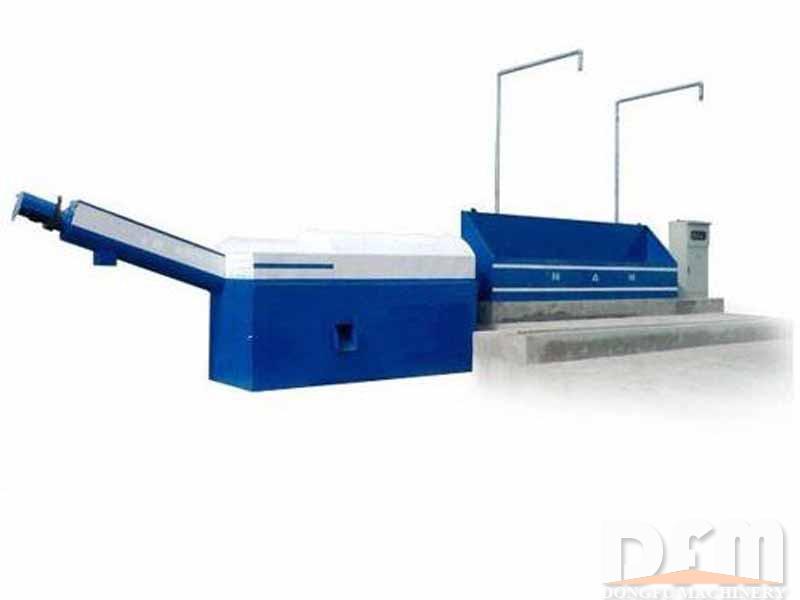

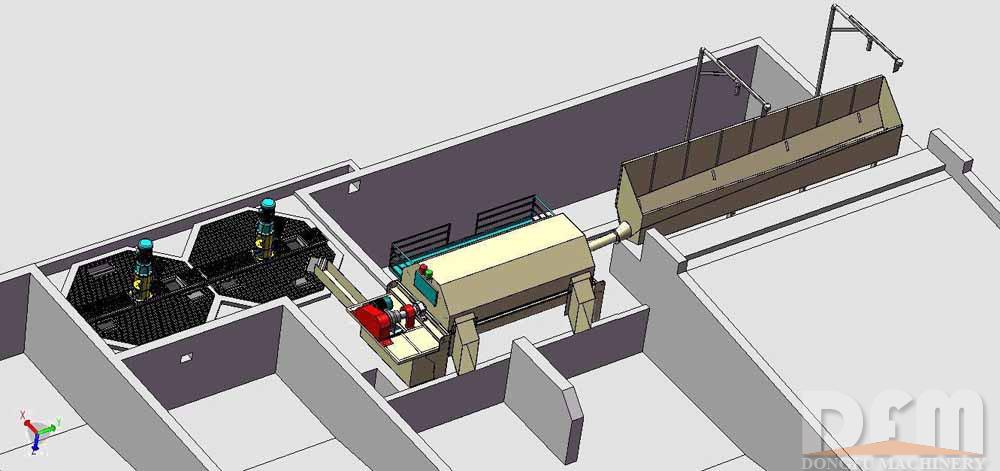

The Concrete Reclaimer is a compact system that washes, separates and dewaters rest concrete and discharges the sand and aggregate separately. Our Concrete Recycling Plant guarantees a perfect sand and aggregate purification effect with less than 0,5% remaining cement, sand, aggregates and the concrete/ water mixture can be reused without problems.

Advantages:

1. Continues washing capacity (max. 20 m3/h);

2. Washes and purifies particle sizes from 0.2 to 40 mm;

3. Suitable for simultaneous washing of two trucks;

4. Fully galvanized steel construction;

5. Simple Operation& Maintenance;

6. Can be used as aggregate washer.

Model	XF-100
Sieving Capacity	20-30
Separate Stone Size	Φ>5
Separate Sand Size	Φ1-5
Total Motor Power(kw)	12
Mixing Vehicle Quantity	10-30
Host Weight	3540
Host Outline Dimension(m)	6.36×1.75×2.393
Total Weight	7T
