1. Model: HBTS40
2. Capacity: 40 m3/h
3. Excellent manufacturing team with experience of over 30 years.
4. All can be customized to meet your needs& boost productivity.
5. Passed CE&ISO9001:2008 quality attestation.
6. Long-term cooperated transport company ensures the timely and safe delivery.
7. One-stop service save your precious time.

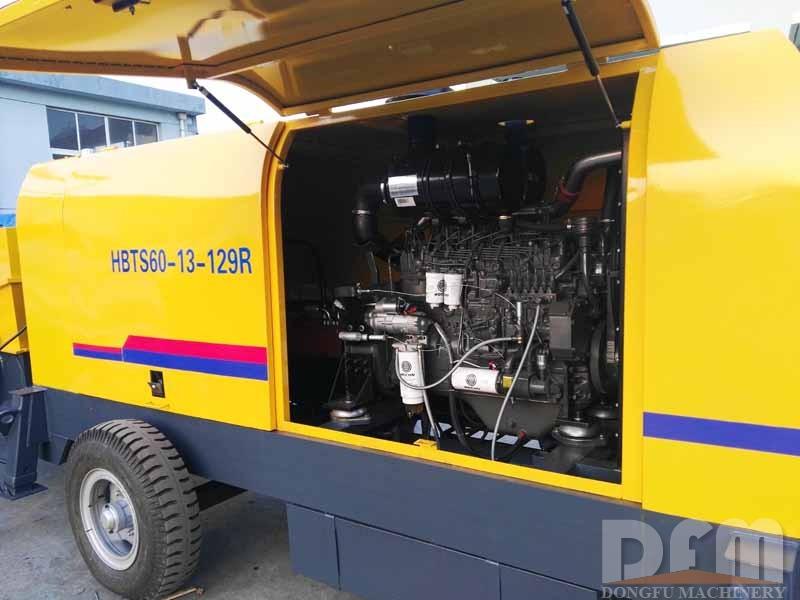

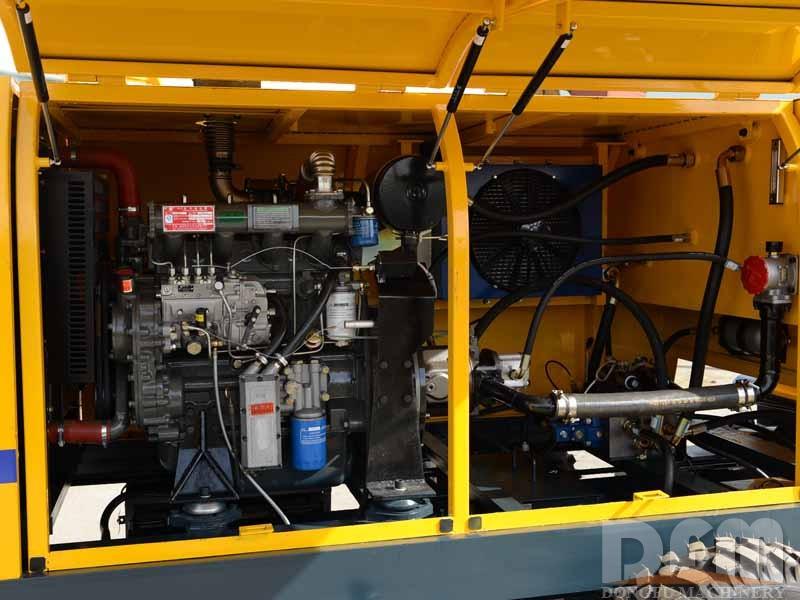

Concrete Pump 40 m3/h, with famous brand variable plunger pump, the concrete pump has high rated pressure.
The valve groups are Eton or Huade, which are high quality. These series pump also have diesel type, which can use in the place without electricity.
● With hydraulic electric control system, the concrete pump is easy operate and maintain.
● The oil pump use famous brand to guarantee the quality.
● With air & water cooling system, the machine can work normally even in high temperature weather.
● Central lubrication system can supply lucubration oil directly with high pressure.
Stone Size (cm) | 0-3 |
Model | HBTS40 |
Mail Oil Pump Discharge(ml/Min) | 112 |
Theory Capacity(m3/h) | 40 |
Motor Power | 45 |
Main Oil Tank Diameter/Stoke (mm) | Φ100/1300 |
Concrete Tank Diameter/Stoke(mm) | Φ160/1300 |
Hydraulic Hose | Manuli, Italy |
Seal | Parker USA |
Electric Control System | Schneider, France |
PLC Brand | Omron, Japan |
Remote Control | Wireless Remote Control |
High/low Voltage Conversion | Yes |
Valve Group | Huade, China |
Pumping Distance Level/Vertical (m) | 400/100 |
Lubrication System | Automatic Hydraulic |
Discharge Pipe Diameter(mm) | Φ125 |
